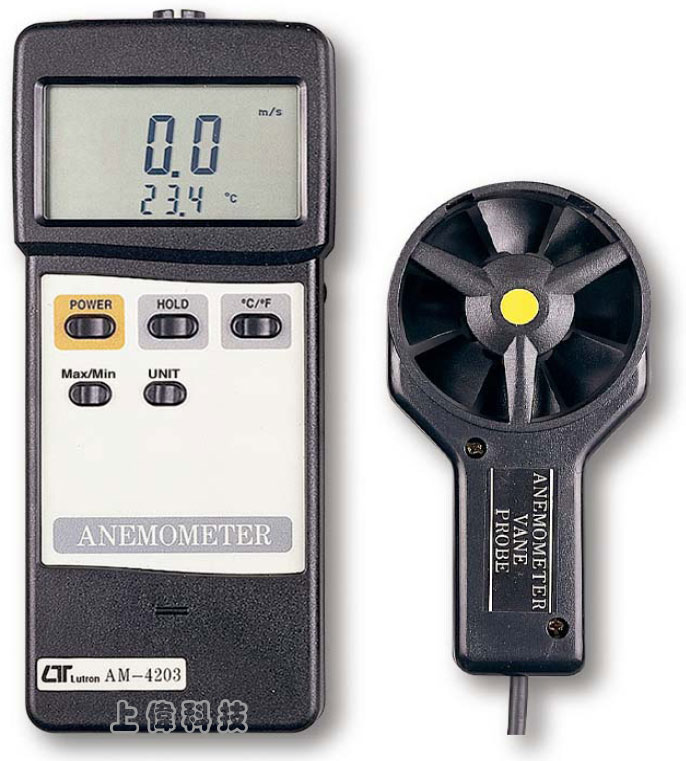

AM-4203
智慧型風速溫度計
特色
- 風速範圍 :
- 0.4 ~ 25.0 公尺/秒
- 1.4 ~ 90.0 公里/小時
- 0.9 ~ 55.9 海浬/小時
- 80 ~ 4930 英呎/分鐘
- 1.9 ~ 38.8 哩/小時
- 溫度範圍 : 0℃ ~ 50.0°C ( 32.0 ~ 122.0°F )
- 精確度 :
- 風速 : ±2%
- 溫度 : ±0.°8C
- 可記錄最大值,最小值及讀值鎖定功能
- 雙視窗同時顯示風速及溫度
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32mm.
FEATURES
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Super large LCD display, display the air low and the temperature reading at the same time.
- Dual function display.
- Heavy duty & compact case.
- Records Maximum and Minimum readings with recall facilities.
- Data hold.
- Auto power off saves battery life.
- Operates from 9V battery.
- RS 232 PC serial interface.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately.
- Multi-functions air flow measurement: m/s, km/h, ft/min, knots. mile/h.
- Build in temperature measurement ℃/℉.
- Thermocouple sensor for Temp. measurement, fast response time.
- Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature...etc.
一般規格
電路 (Circuit)
- Custom one-chip microprocessor LSI circuit.
顯示 (Display)
- Dual function display, 13 mm(0.5") super large LCD display with contrast adjustment for best viewing angle.
測量 (Measurement)
- m/s ( meters per second )
- km/h ( kilometers per hour )
- Knot ( nautical miles per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Temperature : ℃ or ℉.
- Data hold.
記憶回叫 (Memory Recall)
- Record maximum & minimum reading value with recall.
感應器結構 (Sensor Structure)
- Air velocity sensor : Conventional twisted van arm and low friction ball bearing design.
- Temperaturesensor : Precision thermistor
關機 (Power off)
- Manual off by push button or Auto shut off after 10 minuite(Not activated during memory record function).
資料輸出 (Data Output)
- RS 232 PC serial interface.
過載指示 (Over load indication)
- Indicated by "- - - -".
操作溫度 (Operating Temp.)
- Meter : 0 to 50 ℃.
- Probe : 0 ℃ to 80 ℃ ( 32 ℉ to 176 ℉ ).
操作溼度 (Operating Humidity)
- Max. 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 8.3 mA.
重量 (Weight)
- 381 g/0.84 LB, (included batteries & probe)
尺寸 (Size)
- Main instrument :
180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
- Sensor Head: Round,72 mm Dia.
附件 (Standard Accessory)
- Instruction manual............. 1 PC
- Sensor probe................... 1 PC.
- Carrying Case.................. 1 PC.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/s |
0.4 - 25.0 m/s |
0.1 m/s |
± (2 % + 1 d) |
| km/h |
1.4 - 90.0 km/h |
0.1 km/h |
| mile/h |
0.9 - 55.9 mile/h |
0.1 mile/h |
| knots |
0.8 - 48.6 knots |
0.1 knots |
| ft/min |
80 - 4930 ft/min |
1 ft/min |
± (2 % + 20 ft/min.) |
Remark :
- m/s : meters per second
- km/h : kilometers per hour
- mile/h : miles per hour
- knots : nautical miles per hour
- ft/min : feet per minute
溫度 (Air Temperature)
| Measurement |
Range |
Resolution |
Accureacy |
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
|
