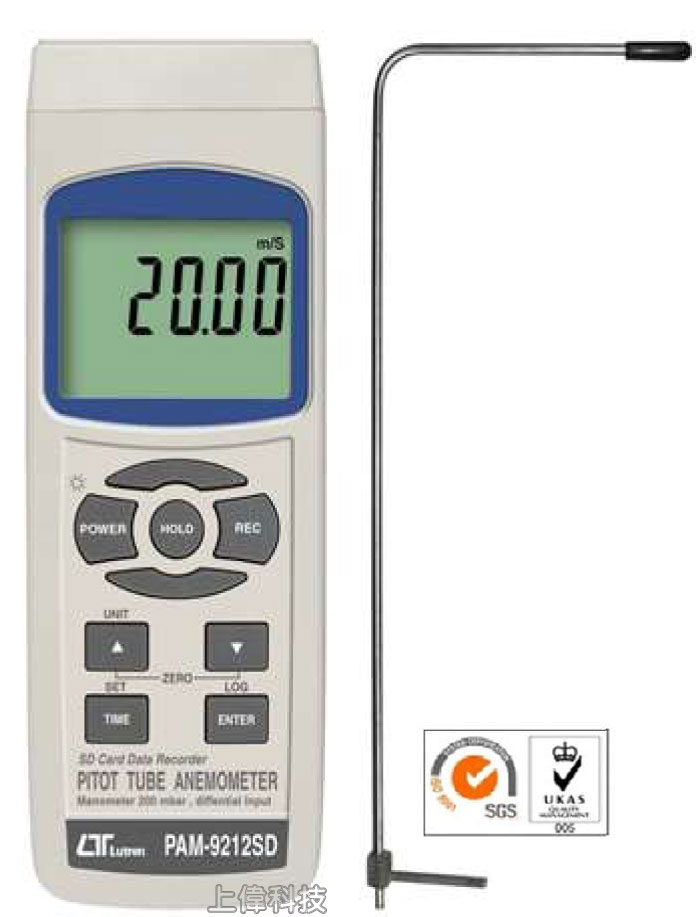

PAM-9212SD
記憶式風速/壓力/差壓力計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 風速 : 4.1 ~ 100.0 公尺/秒 ±1%FS
- 風速 5種測量單位選擇
- 壓力 :
±200毫巴(mbar)
±2%FS
- 雙壓力感應器,可測量壓力及差壓
- 壓力 10種測量單位選擇
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 190 x 68 x 45mm.
FEATURES
- Pitot tube Anemometer measurements for Air
Velocity .
- Dual & differential input, ± 200 mbar max.
range.
- Application : Industrial, laboratory,
heating, ventilation, medical hospital, used for air or not corrosive and
not ionized gas & liquid.
- Sensor is built inside the housing.
- Single plugs for pipe connection.
- Measurement units:
- Air vilocity : m/s, km/h, FPM, mph,
knots
- Air pressure: 10 kind display units (
mbar, Kg/cm2 , mm Hg, meter H2O, Atmosphere, psi, inch Hg, inch H2O, hpa ,
kpa ) select by push button on the front panel
- Auto shut off saves battery life.
- Zero button on the front panel, easy to offset
the zero value.
- Microprocessor circuit assures maximum
possible accuracy, provides special functions and features,
- Super large LCD display for best viewing
angle.
- No need setup extra software, after execute
datalogger, just take away the SD card from the meter and plug in the SD
card into the computer, it can download the all the measured value with the
time information ( year/month/date/hour/minute/second ) to the Excel
directly, thenuser can make the further data or graphic analysis by
themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- It can default auto power off or manual power
off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC
9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 51 mm x 37 mm
- LCD with green backlight ( ON/OFF ).
測量功能 (Measurement Function)
- Air vilocity & Dual differential input, data hold,
zero/relative, memory.
歸零調整 (Zero adjust)
- Push button on the front panel.
感測器 (Sensor)
- Sensor is built inside the housing.
Piezoelectric sensor.
Used for dry, non-corrosive and non-ionic air and gas
only.Liquid is prohibited.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to
8 Hour 59 Minute 59 sec.
- @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
資料錯誤數 (Data error no.)
- ≦ 0.1 % no. Of total saved data typically.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
* Auto power OFF management
* Set beep Sound ON/OFF
* Decimal point of SD card setting
- * SD memory card Format
*
Air density setting
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC
7 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC
25 mA.
- * If LCD backlight on, the power consumption will
increase approx. 10 mA.
重量 (Weight)
- 265 g / 0.59 LB.
體積 (Dimension)
- Main instrument :
190 x 68 x 45 mm (7.5 x 2.7x 1.8 inch)
附件 (Standard Accessory)
- Instruction manual................... 1 PC
- PLug for quick coupler................2 PC
- Pito tube 018.........................1 PC
- Silicon Soft tube 01( 50 cm ).........2 PC
選購附件 (Optional & accessories Temp. Probe)
- SD Card ( 4 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U811-WIN.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/S |
4.1 to 100.0 m/s |
0.1 m/s |
±( 3% + a ) reading
or
±( 1% + a ) full scale
*Air density :1.200 |
| Km/h |
14.7 to 360.0 km/h |
0.1 km/h |
| Mile/h (mph) |
9.1 to 223.7 mph |
0.1 mph |
| Knot |
7.9 to 194.3 knot |
0.1 knots |
| Ft/min |
81-19685 ft/min |
1 ft/min |
Remark :
- ft/min : feet per minute
- MPH : miles per hour
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
壓力計 (Manometer)
| Unit |
Max. range |
Resolution |
Accuracy |
| m bar |
± 200 mbar |
1 mbar |
± 2 % F. S. ( F.S. ) Note :
* 23 ℃ ± 5 ℃ . *
F.S. : full scale * Included linearity,
hysteresis and repeatability |
| psi |
±2.9 psi |
0 psi |
| Kg/cm^2 |
±0.204 Kg/cm^2 |
0 Kg/cm^2 |
| mm/Hg |
±150 mm/Hg |
1 mm/Hg |
| inch/Hg |
±5.905 inch/Hg |
0 inch/Hg |
| h PA |
± 200 h PA |
1 h PA |
| K PA |
± 20 K PA |
0 K PA |
|
meter/H2O |
± 2.040 meter/H2O |
0 meter/H2O |
| inch/H2O |
±2180 inch/H2O |
0 inch/H2O |
| Atmosphere |
± 0.197 Atmosphere |
0.001 Atmosphere |
|
