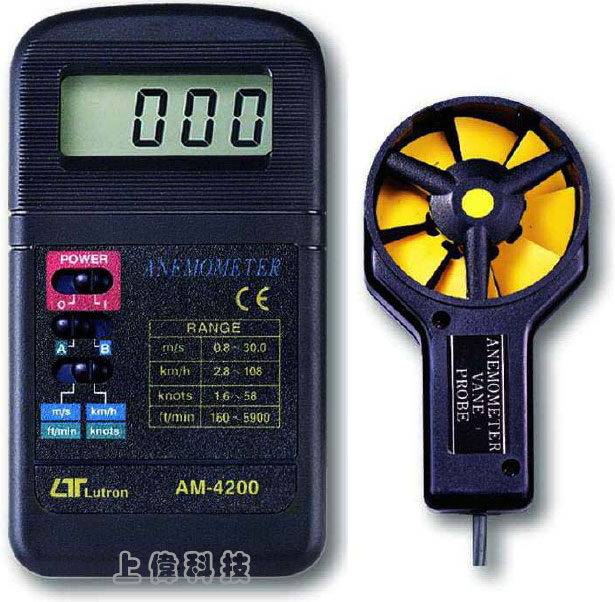

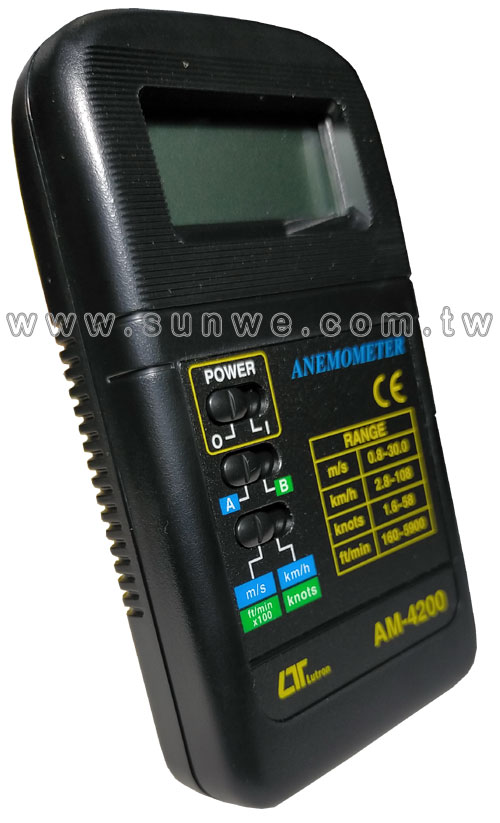

AM-4200
迷你型風速計
特色
- 測量範圍 :
- 0.8 ~ 30.0 公尺/秒
- 2.8 ~ 108.8 公里/小時
- 1.6 ~ 58.0 海浬/小時
- 160 ~ 5900 英呎/分鐘
- 精確度 : ±3%
- Size : 131 x 70 x 25mm.
FEATURES
- High quality with the economical cost.
- Pocket & compact housing case.

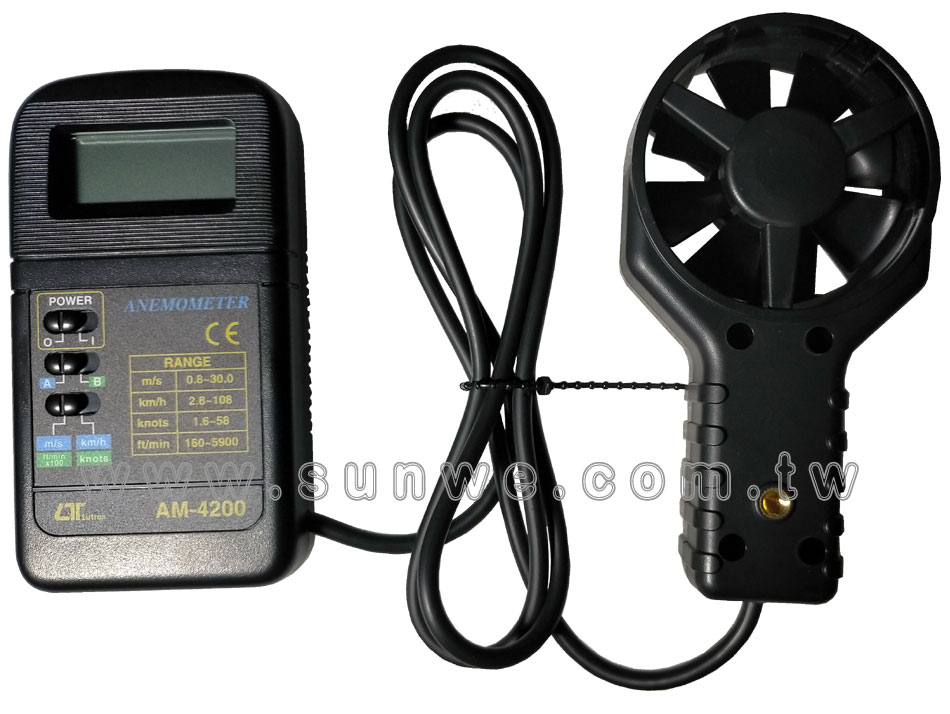

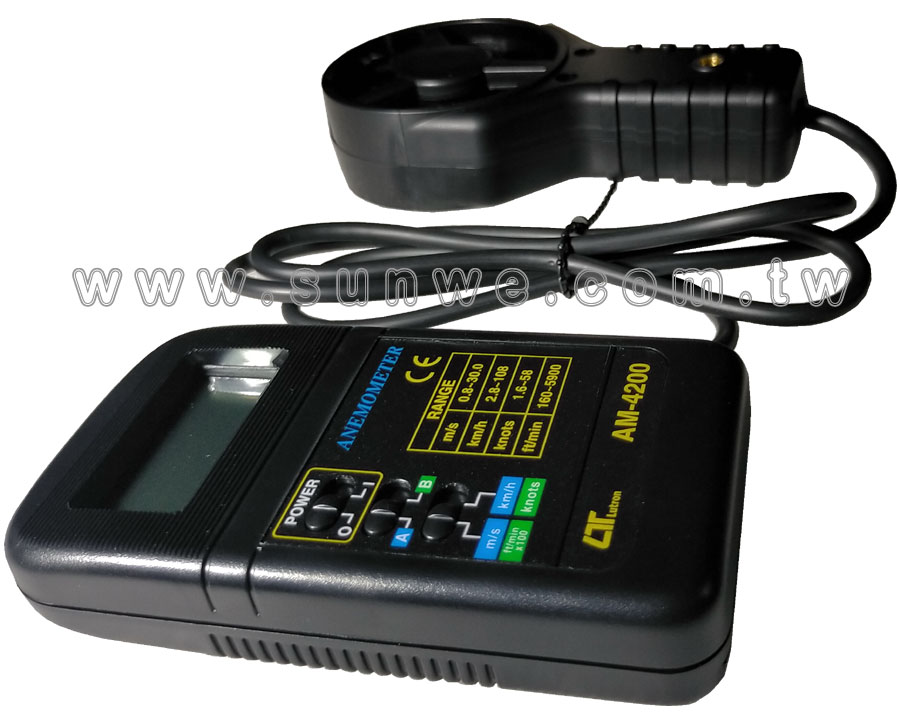

- Separate probe, convenient for the remote measurement.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- Multi-functions for air flow measurement: m/s, km/h, ft/min, knots. mile/h.
- Fast and accurate readings with LCD display.
- Battery power source from 006P DC 9V batteries.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature...etc.
一般規格
顯示 (Display)
- 13 mm ( 0.5" ) LCD. 3 1/2 digits
測量 (Measurement)
- m/s ( meters per second )
- km/h ( kilometers per hour )
- ft/min ( feet per minute )
- Knot ( nautical miles per hour )

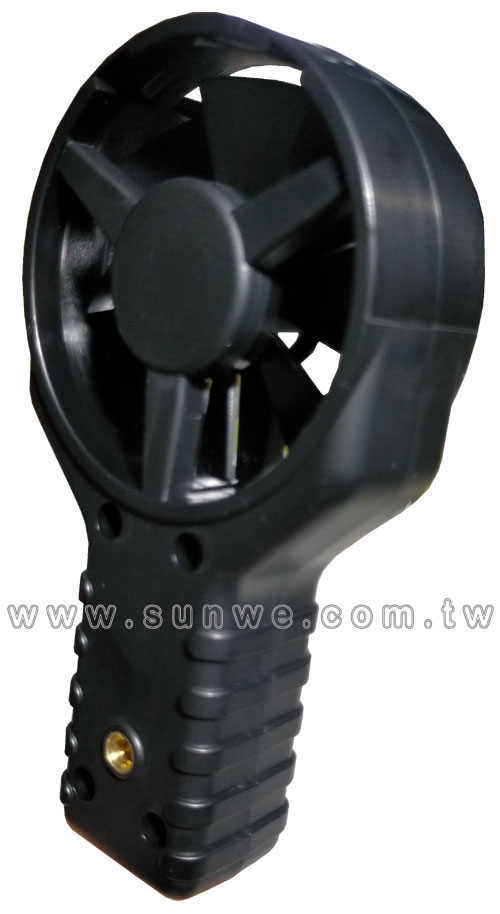

感應器結構 (Sensor Structure)
- Conventional twisted van arm and low friction ball bearing design.
取樣時間 (Sampling Time)
- Approx. 0.4 sec
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源損耗 (Power Consumption)
- Approx. DC 6 mA.
重量 (Weight)
- 381 g/0.84 LB, main instrument
尺寸 (Size)
- Main instrument :
180 x 73 x 23 mm (4.3 x 2.9 x 1.4 inch).
- Sensor head : Round, 72 mm Dia.
附件 (Standard Accessory)
- Instruction manual................... 1 PC
- Sensor probe......................... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- High quality rubber protective holster. Model : HS-02
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/s |
0.8 - 30.0 m/s |
0.1 m/s |
Full scale : ± ( 3 % + 2 d ) |
| km/h |
2.8 - 108 km/h |
0.1 km/h |
| knots |
1.6 - 58 knots |
0.1 knots |
| ft/min |
160 - 5900 ft/min |
10 ft/min |
Remark :
- m/s : meters per second
- km/h : kilometers per hour
- knots : nautical miles per hour
- ft/min : feet per minut
|
