YK-30WA
水質測試計
- 水質越來越受到人類的關注，它也是工業部門、實驗室或其他領域的一個重要因素。
- 在工業領域，如果在此過程中使用優質水（更多的純水），將對產品品質有很大説明。
- 如果家庭飲用水記憶體在高導電性並含有雜質，可能會導致多種疾病，純水測試儀（水質測試儀）設計用於檢查水的純度（水導電性）也可以輕鬆快速地確定「水篩檢程式」的條件。

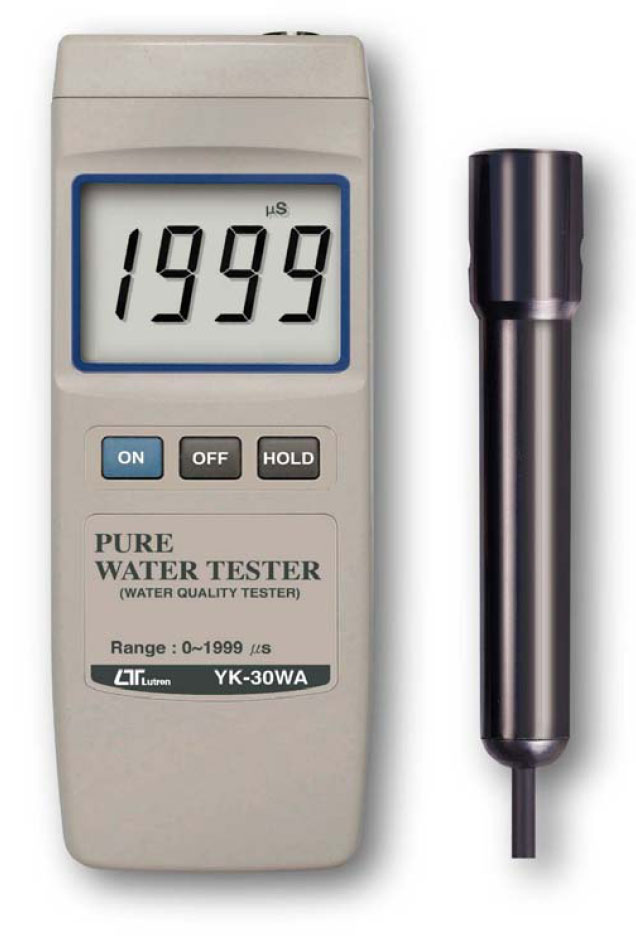

- YK-30WA 純水錶採用筆型設計，提供準確可靠的測量，使其成為水調節、水族箱、食品加工等各種應用的必備工具。
特色
- 筆型設計：緊湊輕便，筆型設計可快速準確地讀數，具有數位可讀性和易於操作的特點。
- 測量範圍廣：測量電導率從 0 至 1,999 µS，為測試水純度提供了全面的範圍。
- 自動溫度補償：內建溫度感測器提供0℃至50℃（32℉至122℉）的自動溫度補償（ATC），確保讀數精確。
- 耐用便攜：配備獨立探頭，便於攜帶和操作，適用於各種環境。
- 使用者友善功能：包括資料保持功能以凍結所需值、自動關機以節省電池壽命以及最大值和最小值的記憶呼叫。
FEATURES
- The quality of the water is getting much more concerned by the human being and it also an important factor in the industrial sectors, laboratories or other fields.
- In industrial sectors, it would be a great help for the quality of the products if using the good water ( more pure water ) in the process.
- It may cause several diseases if home drink water existing high conductivity & contain impurities, the Pure Water Tester ( Water Quality Tester) are designed to check the purity of water (water conductivity) also can determine the condition of the " Water Filter " easily and rapidly.
- The tester is used to measure the conductivity value (ranging from 0 - 2000 uS) which can therefore judge whether water is pure or not. The conductivity value will become lower if there is much less impurities existed in water (for example, distilled water that its purity is higher than others will get a lower conductivity value of approx. < 10 uS).
- Many people always take many kinds of procedures on water treatment by install the different kinds of equipment, such as filter or purifier to improve the quality of water. However, most of people do not know whether the procedures or filter is effective and can con- tribute to the quality of water. General speaking, the impurities will be filtered out if the water process procedures attain the expected result, thus we can use this instrument to measure the conductivity value of purified water and to judge the effect of the filter (or water process procedures).
說明
- 測量範圍：0 至 1,999 µS
- 解析度：1 µS
- 準確度：23℃±5℃時±（3％+1d）
- 顯示器：大型 LCD 顯示屏，數位高度為 21.5 毫米
- 溫度補償：自動從 0℃ 至 50℃（32℉ 至 122℉）
- 超範圍指示：LCD 顯示幕將顯示“1”
- 工作溫度：0℃至50℃（32℉至122℉）
- 工作濕度：最大。 80% 相對濕度
- 電源：DC 9V 電池（006P）
- 耗電量：約5 mA
- 尺寸：
- 主儀器：200 x 68 x 30 mm（7.9 x 2.7 x 1.2 吋）
- 感測器探頭：圓形，直徑 22 毫米，長度 120 毫米
- 重量：約 270 公克（0.60 磅）
- 附配件：
- 使用說明書
- 感測器探頭
- 可選配件：
- 硬質便攜包（CA-06）
- 軟式手提箱（CA-05A）
- 多種應用：非常適合用於水調節、水族館、飲料工業、魚孵化場、食品加工、攝影、實驗室、造紙工業、電鍍工業、品質控制、學校和學院。它也可用於檢查水過濾器的狀況。
一般規格
特色 (Features)
- Compact size, separate probe.
- Easy carry out & operation.
顯示 (Display)
- Large LCD display,
21.5 mm digit height.
- Max. display count no. 1999..
測量範圍 (Measurement)
- 0 to 1999 uS.
- * uS - micro Simens.
解析度 (Resolution)
- 1 uS.
精確度 (Accuracy)
- ± (3 % + 1 d) F.S.
- * F.S. : full scale. * 23 ± 5 ℃
溫度補償 (Temperature Compensation)
- Automatic, 0 to 50 ℃( 32 to 122℉ ).
超過範圍指示 (Over Range Indication)
- LCD display will show " 1 ".
操作溫度 (Operating Temperature)
- 0 to 50 ℃( 32 to 122℉ ).
操作濕度 (Operating Humidity)
- Max. 80% RH.
電力消耗 (Power Consumption)
- Approx. DC 5 mA.
重量 (Weight)
- Approx. 270 g/0.60 LB.
尺寸 (Dimension)
- Main instrument: 200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ).
- Sensor probe: Round, 22 mm Dia. 120 mm length.
標準附件 (Standard Accessory)
- Operation Manual..........1 PC
- Sensor probe................1 PC
選購配件 (Optional
Accessories)
- Hard carrying case, CA-06
- Soft carrying case, CA-05A
|
