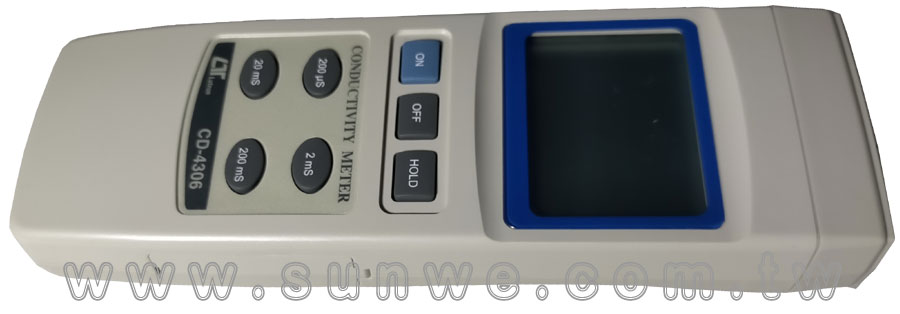

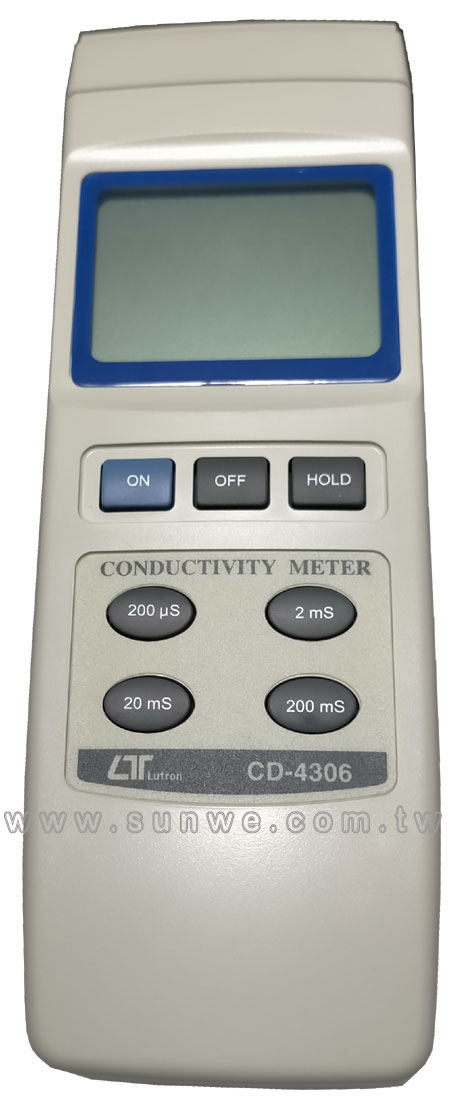

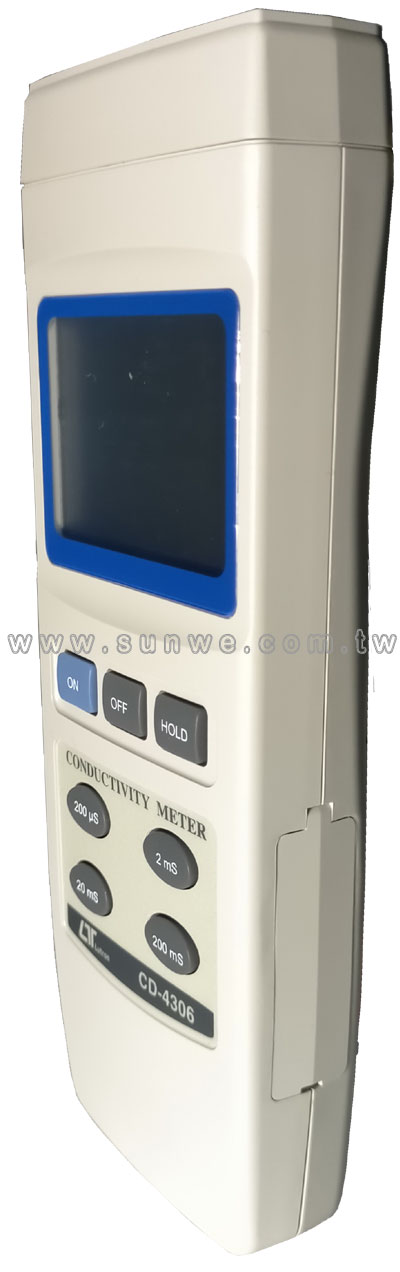

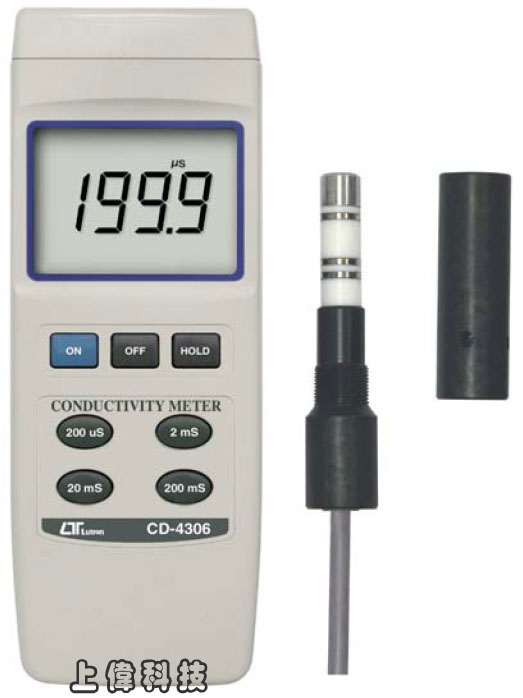

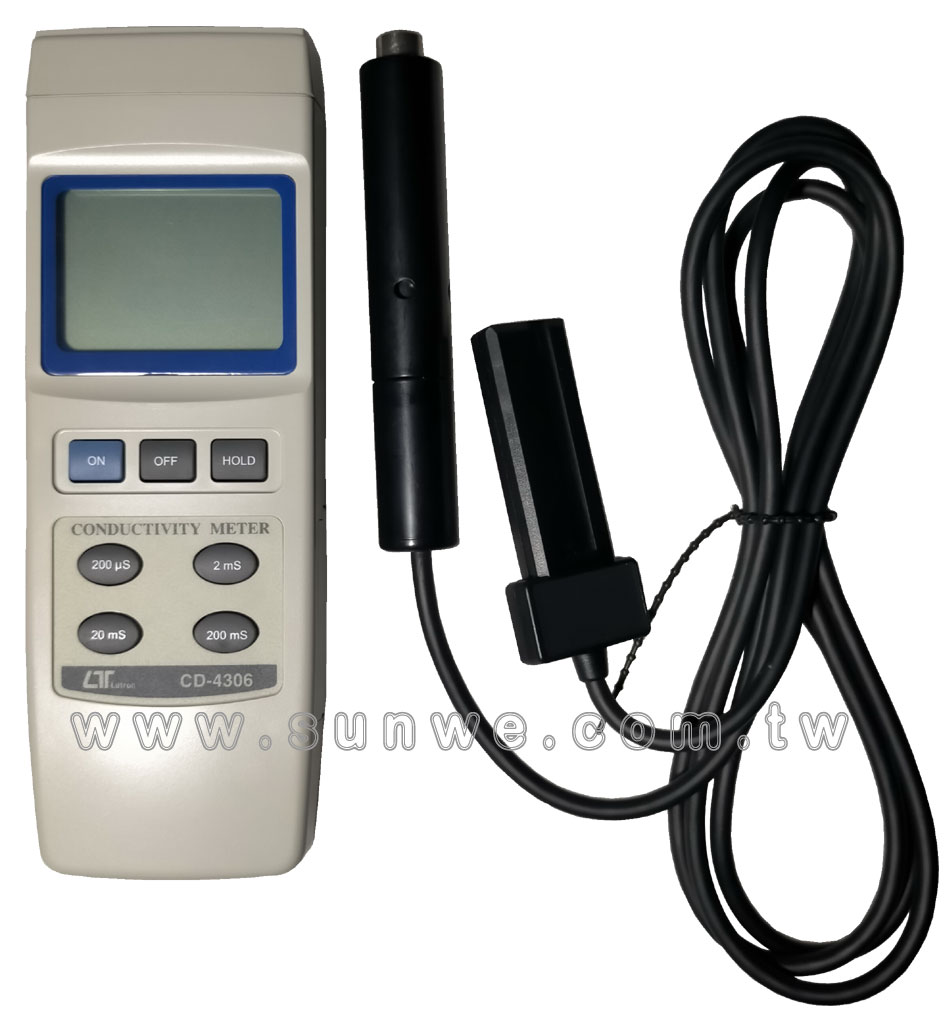

CD-4306

電導度計

特色

測量範圍 :

0.1 ~ 200 uS

0.2 ~ 1.999 mS

2 ~ 19.99 mS

20 ~ 200 mS

精確度 : ±1% (滿刻度)

具有溫度補償功能

讀值鎖定功能

Size : 200 x 68 x 30 mm.

FEATURES

4 rings conductivity probe, high performance, wide range, professional.

4 ranges : 200 uS, 2 mS, 20 mS, 200 mS.

Separate electrode, easy operation.

The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.

LCD display for low power consumption & clear read-out even in bright ambient light condition.

Water resistance on the front panel.

All function keys are used the rubber button.

Data hold.

Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.

Built-in Low battery indicator.

Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college.

一般規格

顯示 (Display)

Large LCD display, 21.5 mm digit height.

測量及範圍 (Measurement & ranges)

4 ranges : 200 uS, 2 mS, 20 mS, 200 mS.

解析度 (Resolution)

0.1 uS for 200 uS range.

0.001 mS for 2 mS range.

0.01 mS for 20 mS range.

0.1 mS for 200 mS range.

* uS - micro Simens

* mS - milli Simens

精確度 (Accuracy)

± ( 1% F.S. + 1 d ).

* 23± 5 ℃

* F.S. : full scale

取樣時間 (Sampling Time)

Approx. 1 sec

過載指示 (Over Range Indication)

Display shows " 1 ".

資料鎖定 (Data hold)

To freeze the measured pH value on the display.

溫度補償 (Temperature Compensation)

Automatic, 0 to 50 ℃ (32 to 122 ℉).

Temperature compensation factor fix on fix on 2% per ℃.

校正VR (Calibration VR)

Build in external calibration VR.

操作溫度 (Operating Temp.)

0 to 50 ℃ (32 to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

Heavy duty type, 006P DC 9V battery MN1604 ( PP3 ) or equivalent.

電源電流 (Power Current)

 Approx. DC 5 mA

重量 (Weight)

270 g/0.60 LB ( w/battery & electrode ).

體積 (Dimension)

Meter : 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch ).

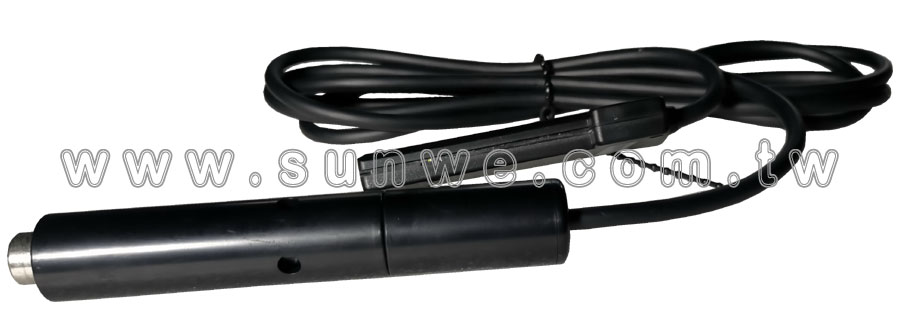

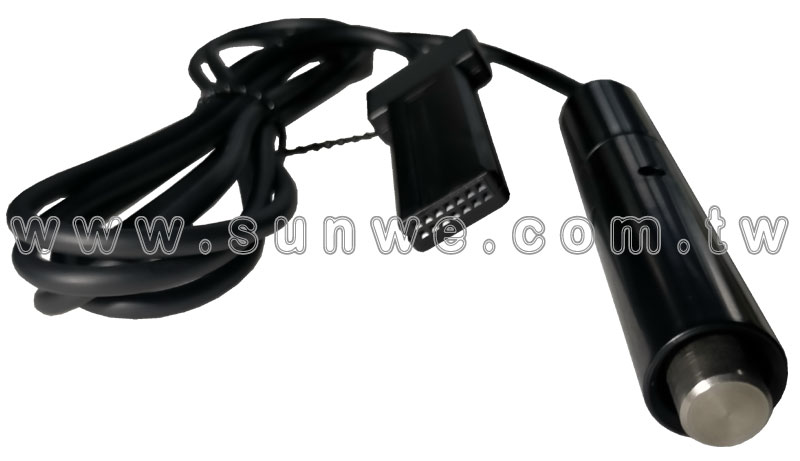

Electrode : Round, 20 mm Dia. x 124 mm length.

附件 (Standard Accessory)

Instruction Manual............... 1 PC.

Conductivity electrode........... 1 PC.

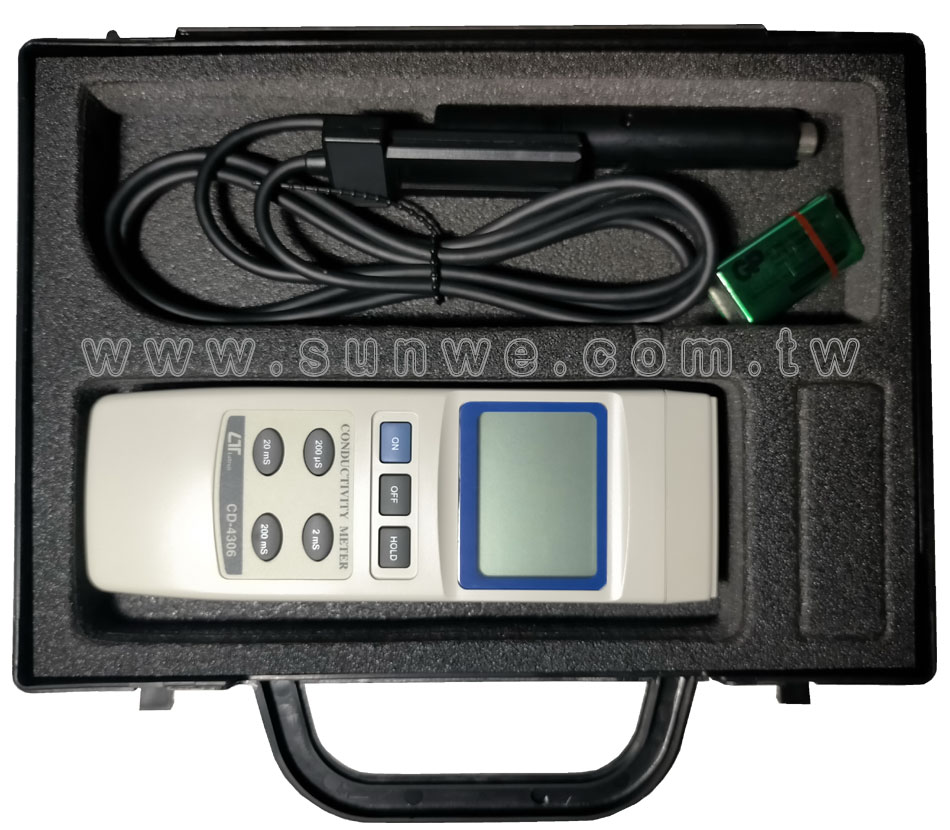

Hard Carrying Case................CA-06

選購附件 (Optional accessories)

1.413 mS calibration solution.... CD-14

　

　

　

　

　

　

　

　

　

　
