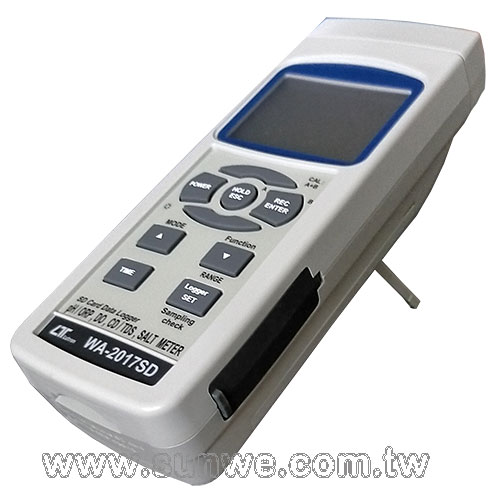

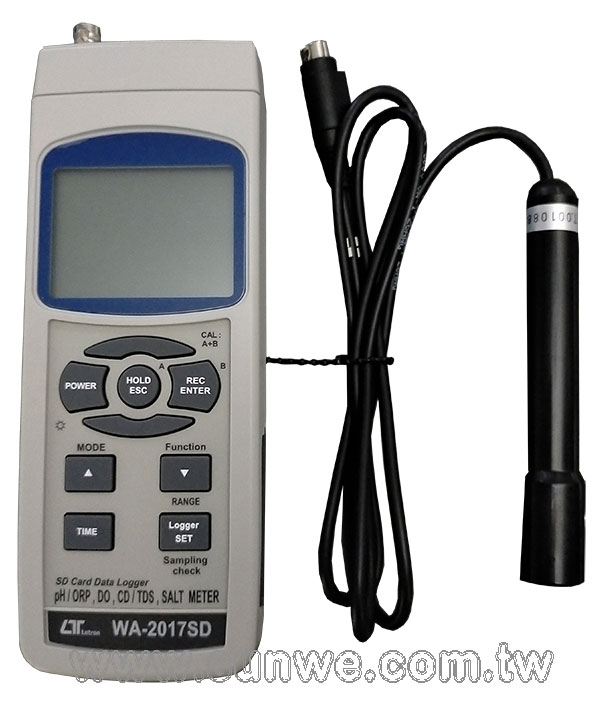

WA-2017SD
記憶式多功能水質檢測儀
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 :
- 酸鹼度 : 0 ~ 14.00PH
- 氧化還原 : -1999mV ~ +1999mV
- 電導度 : 0.1μS ~ 199.9mS
- 總固體溶解量 : 0.1 ~ 132000ppm
- 鹽分範圍 : 0 ~ 12.00%
- 溫度 : 0 ~ 60.0ºC
- 溶氧：0 ~ 20.0mg/L
- 氧氣：0 ~ 100.0%
- 可記錄最大值,最小值及讀值鎖定功能.
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 177 x 68 x 45mm.
FEATURES
- One meter for multi purpose operation : PH/ORP, CD/TDS, Dissolved Oxygen, Salt measurement.
- pH : 0 to 14.00 pH, ORP : ± 1999 mV.
- Conductivity :
200 uS/2 mS/20 mS/200 mS.
- Dissolved oxygen : 0 to 20.0 mg/L.
- Salt : 0 to 12 % salt ( % weight ).
- Optional PH, ORP, CD/TDS/Salt, Dissolved Oxygen and ATC probe.
- PH meter function can select PH or ORP.
- PH measurement can select ATC or manual temperature adjustment.
- PH measurement can make the auto calibration for pH 7, pH 4 and pH 10 or other value.
- Conductivity measurement can select uS/mS or TDS
- Conductivity measurement can select Temp. Coefficient of measurement solution.
- ATC for the conductivity measurement.
- Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement.
- Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
- DO use the automatic Temp. compensation.
- DO meter build in " % SALT " & " Mountain Height " compensation value adjustment.
- Separate probe, easy for operation of different measurement environment.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar,real time data recorder , sampling time set from 1 sec to 8 hour 59 min. 59 sec.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity :
1 GB to 16 GB.
- LCD with green light backlight, easy
reading.
- Can default auto power off or manual power
off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or
DC 9V adapter.
- RS232/USB PC COMPUTER interface.
- Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量 (Measurement)
- PH/ORP 1. Conductivity ( uS, mS )
- Conductivity/TDS(Total Dissolved Solids)
- Dissolved Oxygen
- Salt
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Set temperature unit to ℃ or ℉
- * Set DO salt% compensation value
- * Set DO height ( meter ) compensation value
- * Set DO height ( feet ) compensation value
- * Set CD temperature compensation factor
- * Set CD to TDS or TDS to CD, CD only
- * Set pH manual Temp. compensation value
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
- 489 g/1.08 LB
尺寸 (Size)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Standard Accessory)
- Instruction manual.......................... 1 PC
- Hard arrying case ( CA-06 )..................1 PC
- Conductivity/TDS probe,Salt probe CDPB-03....1 PC
選購附件 (Optional & accessories Temp. Probe)
- PH electrode...PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-05T, PE-03K7
- ATC ( Automatic Temperature Probe )..... TP-07
- pH 7 buffer solution.................... PH-07
- pH 4 buffer solution.................... PH-04
- Conductivity probe.......................CDPB-03
- 1.413 mS Conductivity Standard Solution..CD-14
- Oxygen probe.............................OXPB-11
- Spare Probe head with Diaphragm set .....OXHD-04
- Probe-filling Electrolyte................OXEL-03
- ORP Electrode........................... ORP-14
- SD memory card ( 1 GB )
- SD memory card ( 2 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software,SW-U801-WIN.
電器規格
ELECTRICAL SPECIFICATIONS (23 ±5℃)
A.酸鹼度/氧化還原 (PH/mV)
- PH Electrode :
- Optional, Any PH electrode with BNC connector.
- Measurement :
- PH : 0 to 14 PH
- mV : -1999 mV to 1999 mV
- Input Impedance : 10^12 ohm
- Temperature Compensation for pH measurement
- Manual : 0 to 100 ℃, be adjusted by push button on front panel.
- Automatic ( ATC ) : With the optional temperature probe ( TP-07 ) 0 to 65 ℃.
- pH Calibration :
- PH7, PH4, and PH10, 3 points calibration ensure the best linearity and accuracy.
- Optional probe and accessories
- * PH electrode...PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-05T, PE-03K7
- * ATC ( automatic temperature probe ).............TP-07.
- * pH 7 buffer solution............................PH-07
- * pH 4 buffer solution............................PH-0.4
- * ORP electrode...................................ORP-14
- * 1.413 mS Conductivity Standard Solution.........CD-14
| Measurement |
Range |
Resolution |
Accuracy |
| PH |
0 to 14 PH |
0.01 PH |
± (0.02 PH + 2 d) |
| mV |
0 to 1999 mV |
1 mV |
± (0.5% + 2 d) |
- * PH accuracy is based on calibrated meter only.
B.電導度 (Conductivity)

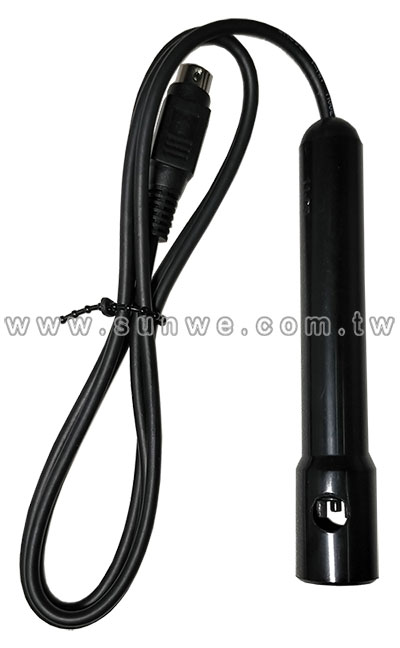

- Conductivity probe : Optional, Carbon rod electrode for long life.
- Function
- * Conductivity ( uS, mS )
- * TDS ( Total Dissolved Solids, PPM )
- * Temperature ( ℃,℉)
- Temperature Compensation : Automatic from 0 to 60 ℃ (32 - 140 ℉), with temperature compensation factor variable between 0 to 5.0% per C.
- Probe Operating Temperature : 0 to 60 ℃.
- Probe Dimension : Round, 22 mm Dia. x 120 mm length.
- Optional probe and accessories
- * Conductivity probe........................CDPB-03
- * 1.413 mS Conductivity Standard Solution.....CD-14
1.電導度 Conductivity ( uS, mS )
| Range |
Measuring values |
Resolution |
Accuracy |
| 200 uS |
0.1 uS to 199.9 uS. |
0.1 uS |
± (2 % F.S. + 1 d) * F.S. - Full scale |
| 2 mS |
0.2 mS to 1.999 mS. |
0.001 mS |
| 20 mS |
2 mS to 19.99 mS |
0.01 mS |
| 200 mS |
20 to 200.0 mS |
0.1 mS |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
*mS - milli Simens
* @ 23± 5℃
總固體溶解量 TDS ( Total Dissolved Solids )
| Range |
Measurement |
Resolution |
Accuracy |
| 200 PPM |
0 to 132 PPM |
0.1 PPM |
± (2% F.S.+1d) * F.S. - Full scale |
| 2,000 PPM |
132 to 1,320 PPM |
1 PPM |
| 20,000 PPM |
1,320 to 13,200 PPM |
10 PPM |
| 200,000 PPM |
13,200 to 132,000 PPM |
100 PPM |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
* PPM - parts per million
溫度 (Temperature)
| Function |
Measuring Range |
Resolution |
Accuracy |
| ℃
|
0 ℃ to 60 ℃ |
0.1 ℃ |
0.8 ℃ |
| ℉ |
32 ℉ to 140 ℉ |
0.1 ℉ |
1.5 ℉ |
C.鹽份計 (Salt)
- Conductivity probe : Optional, Carbon rod electrode for long life.
- Measurement Range : 0 to 12 % salt ( % weight ).
- Resolution : 0.01 % salt.
- Accuracy : 0.5 % salt value
- * F.S. : full scale.
- Temperature Compensation : Automatic from 0 to 60 ℃ (32 - 140 ℉), with temperature compensation factor variable between 0 to 5.0% per C.
- Probe Operating Temperature : 0 to 60 ℃.
- Probe Dimension : Round, 22 mm Dia. x 120 mm length.
- Optional probe and accessories :
- Salt probe ( Conductivity probe )..................CDPB-03
D.溶氧
- Oxygen Probe : Optional, The polarographic type oxygen probe with Measurement & Range
- Dissolved Oxygen : 0 to 20.0 mg/L ( liter ).
- Oxygen in Air : 0 to 100.0 %.
- Temperature : 0 to 50 ℃.
- Resolution
- Dissolved Oxygen : 0.1 mg/L.
- Oxygen in Air : 0.1 % O2 .
- Temperature : 0.1 ℃.
- Accuracy (23± 5 ℃)
- Dissolved Oxygen : ± 0.4 mg/L.
- Oxygen in Air : ± 0.7% O2.
- Temperature : ± 0.8 ℃/1.5 ℉.
- Probe Compensation & Adj.
- Temperature : 0 to 50 ℃, Automatic
- Salt : 0 to 50 % Salt
- Height ( M. T.) : 0 to 8900 meter
- Probe Weight : 335 g/0.74 LB ( batteries & probe included )
- Probe Size : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )
- Optional Accessories
- * Oxygen probe.................................OXPB-11
- * Spare Probe head with Diaphragm set ........ OXHD-04
- * Probe-filling Electrolyte................... OXEL-03
|
