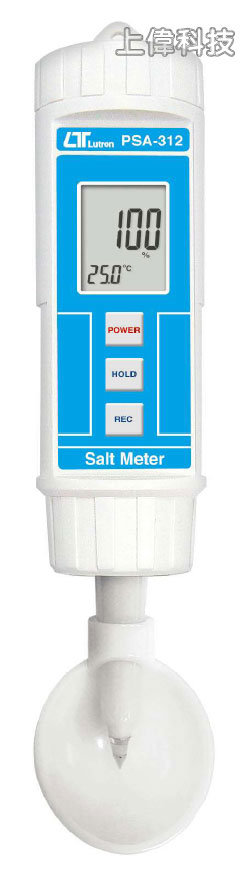

PSA-312
筆式鹽份計

特色
- 測量範圍 :
- 鹽份 : 0 ~ 7.00% ±0.4%.
- 溫度 : 0 ~ 100.0ºC ±0.8%.ºC
- 可記錄最大值,最小值及讀值鎖定功能.
- 採用 Pt 電極 ,使用壽命長.
- 外殼防水 IP67 等級
- Size : 190 x 40 x 40mm.
FEATURES
- All in one pen type Salt meter provides fast,
accurate readings with digital reading.
- Salt measurement ( % ).
- Salt measurement : 0 ~ 6.0 %.
- Temperature measurement : 0 ~ 100 ℃
- Pt electrode for long life.
- Build in temperature sensor, ATC ( auto
temperature compensation ).
- Temperature measurement, ℃, ℉.
- IP67, water proof and protection.
- LCD with two displays show Salt and Temp.
value at same time.
- Data hold function for freezing the desired
value.
- Auto power off to save the battery life.
- Records max. and min. value with recall.
- Microcomputer circuit, intelligent function,
high accuracy.
- Compact size, light weight.
- Power supply by DC 1.5 V battery ( UM4/AAA ) x
4 PCs,
- Available for wide applications, such as
,beverage, food processing,laboratory, quality control,water conditions.
一般規格
顯示 (Display)
- LCD, size : 20 mm x 28 mm.
測量 (Measurement)
- * Salt (% )
*
Temperature
鹽分測棒結構 (Salt Probe Structure)
- Pt electrode for long life.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory
Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
關機 (Power off)
- Auto shut off saves battery life or manual off by
push button.
* Power will off automatically
after 10 min., if no button be pressed.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 140 ℉).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- DC 1.5V battery ( UM-4/AAA ) x 4 PCs.
電源電流 (Power Current)
- Approx. DC 5.7 mA.
重量 (Weight)
- 171 g/0.38 LB.
體積 (Dimension)
- 190 x 40 x 40 mm ( 7.5 x 1.6 x 1.6 inch ).
附件 (Standard Accessory)
- Instruction Manual............................... 1 PC.
- SALTPB-01........................................
1 PC.
選購附件 (Optional accessories)
- Soft carrying case with sash ( 210 x 80 x 50 mm ),
Model : CA-52A
- Hard carrying case ( 280 x 195 x 65 mm ), Model :
CA-06
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
鹽分 (SALT)
測量範圍 (Measurement Range)
- * Salt (% ) :
0 ~ 6.0 % Salt ( % weight )
*
Temperature ( ℃,℉) : 0 ~ 100 ℃
解析度 (Resolution)
- 0.01 % salt.
精確度 (Accuracy)
* 23± 5 ℃
-
0 ~ 2.0% Salt : ( ± 0. 2 )
3.1 ~ 6.0% Salt : ( ±
0. 4 )
溫度 (Temperature)
Function |
Measuring Range |
Resolution |
Accuracy |
℃
|
0 ℃ to 100 ℃ |
0.1 ℃ |
0.8 ℃ |
℉ 3 |
32 ℉ to 212 ℉ |
0.1 ℉ |
1.5 ℉ |
* Above specification tests under
the environment RF Field Strength less than 3 V/M & frequency
less than 30 MHz only.
|
