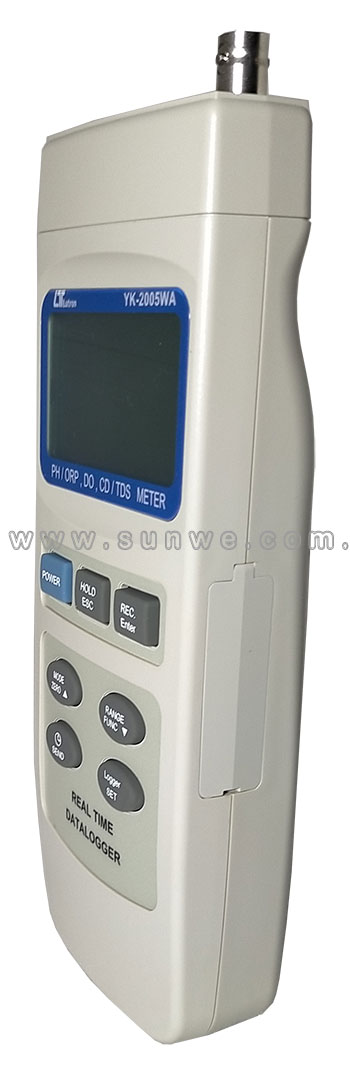

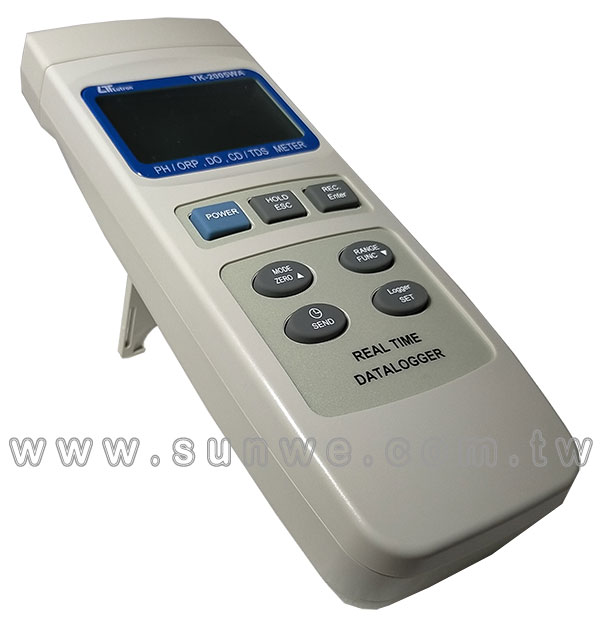

YK-2005WA
多功能水質檢測儀
特色
- 測量範圍 :
- 酸鹼度 : 0 ~ 14.00PH
- 氧化還原 : -1999mV ~ +1999mV
- 導度 : 0.1μS ~ 199.9mS
- 總固體溶解量 : 0.1 ~ 132000ppm
- 溫度 : 0 ~ 60.0ºC
- 溶氧：0 ~ 20.0mg/L
- 氧氣：0 ~ 100.0%
- 一機四功能：PH/ORP、DO、CD/TDS
- 內建記憶體，可記錄16000筆資料
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 203 x 76 x 38mm.
FEATURES
- One meter for multi purpose operation : PH/ORP, CD/TDS, Dissolved Oxygen.
- pH : 0 to 14.00 pH, ORP : ± 1999 mV.
- Conductivity :
200 uS/2 mS/20 mS/200 mS.
- Dissolved oxygen :
0 to 20.0 mg/L.
- Real time data logger ( record year, month, date, hour, minute, second ), 16,000 data logger.
- Real time data logger, build in clock ( hour-MIN-sec., year-month-date ).
- Auto data record, 16,000 Data logger no.
- Wide sampling time adjustment range from one second to 8 hours 59 minutes 59 seconds.

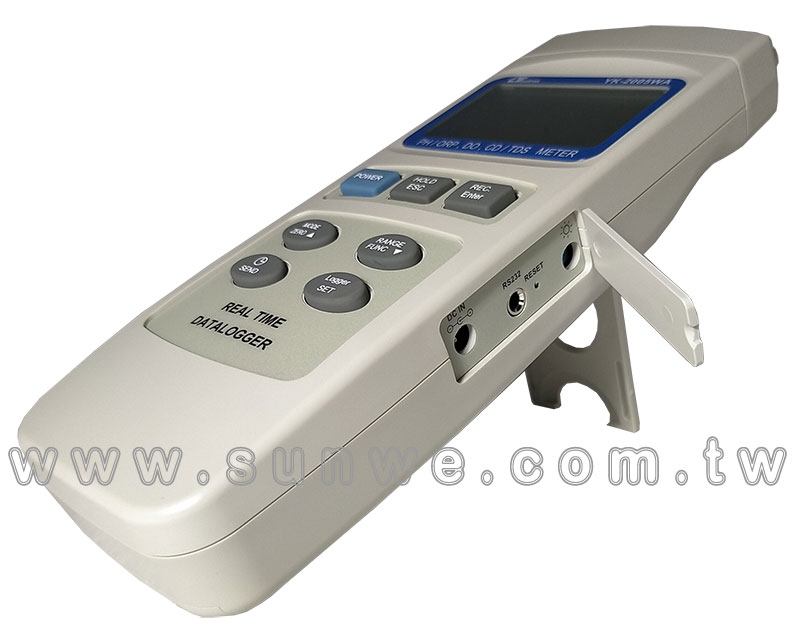

- RS232 computer interface.
- MAX, MIN, Data hold.
- Can default auto power off or manual power off.

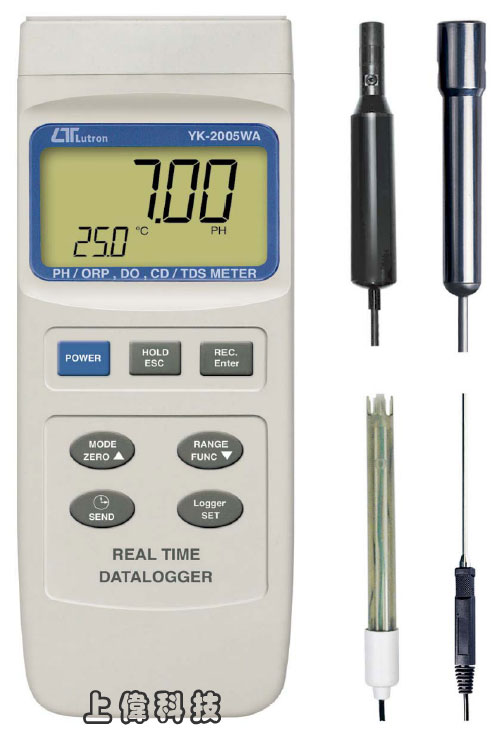

- Optional PH, ORP, CD/TDS, Dissolved Oxygen and ATC probe.
- DC 1.5V ( UM-3, AA ) x 4 PCs or DC 9V adapter in.
- PH meter function can select PH or ORP.
- PH measurement can select ATC or manual temperature adjustment.
- PH measurement can make the auto calibration for pH 7, pH 4 and pH 10 or other value.
- Conductivity measurement can select uS/mS or TDS
- Conductivity measurement can select Temp. Coefficient of measurement solution.
- ATC for the conductivity measurement.
- Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement.
- Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
- DO use the automatic Temp. compensation.
- DO meter build in " % SALT " & " Mountain Height " compensation value adjustment.

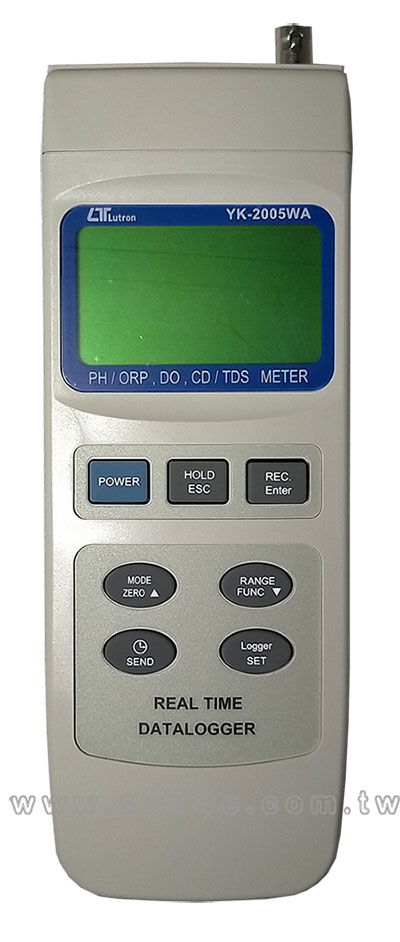

- Super large LCD display with contrast adjustment for best viewing angle.
- Separate probe, easy for operation of different measurement environment.
- Wide applications: water conditioning, aquariums,beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm.
測量 (Measurement)
- PH/ORP
- Conductivity/TDS(Total Dissolved Solids)
- Dissolved Oxygen
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec.
- @ Auto datalogger
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
- @Can default auto power or manual power off.
- @When default auto power function, power will off automatically after 10 min., if no button be pressed.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. - Main instrument.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)

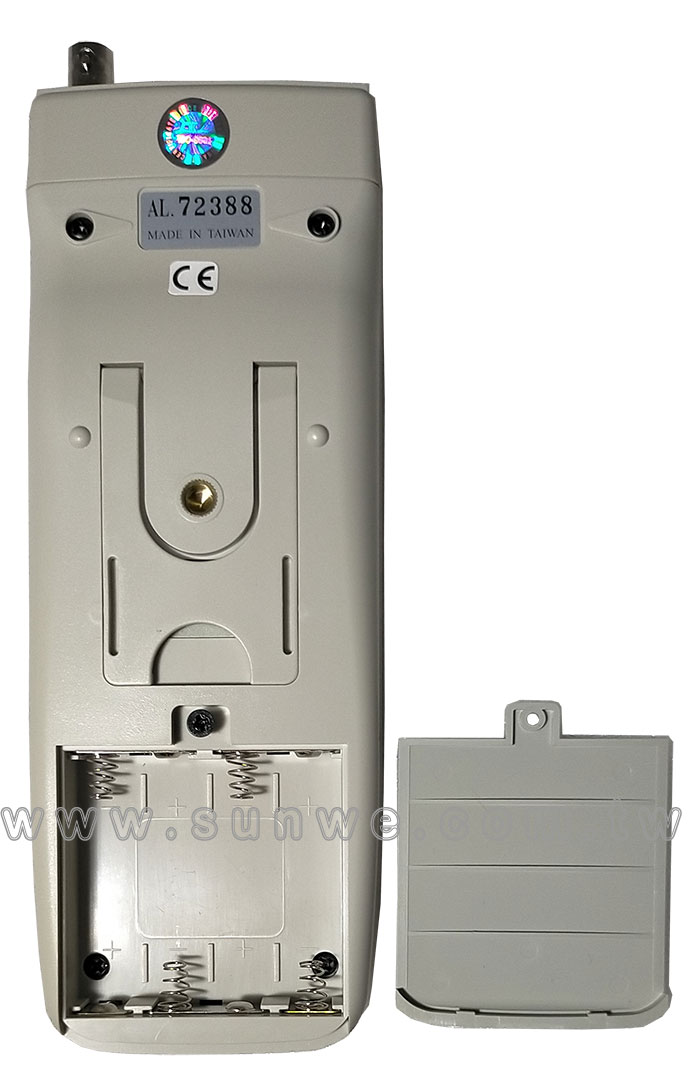

- DC 1,5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ).
- DC 9V adapter input.
- @ AC/DC power adapter is optional.
電源電流 (Power Current)
- Operatiron : Approx. DC 28 mA
- Clock ( power off ) : Approx. DC 1 uA.
重量 (Weight)
- 365 g/ 0.8 LB. @ Battery is included.
尺寸 (Size)
- 203 x 76 x 38 mm
附件 (Standard Accessory)
- Instruction manual................... 1 PC

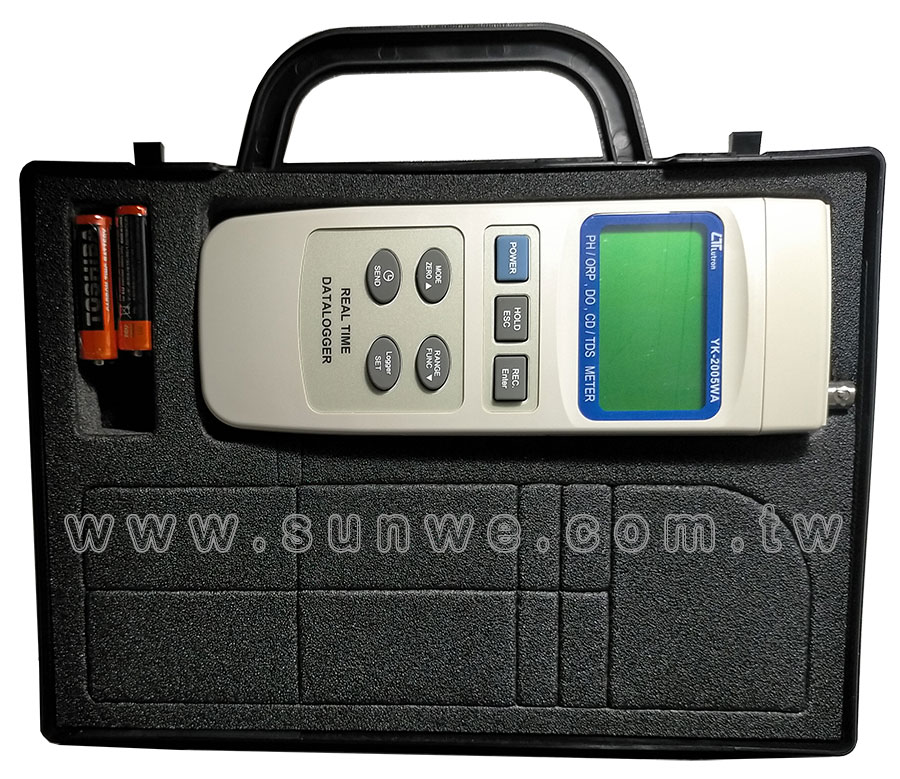

- Hard arrying case ( CA-06 )...........1 PC
選購附件 (Optional & accessories Temp. Probe)
- PH electrode...PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-05T, PE-03K7
- ATC ( Automatic Temperature Probe )..... TP-07
- pH 7 buffer solution.................... PH-07
- pH 4 buffer solution.................... PH-04
- Conductivity probe.......................CDPB-03
- 1.413 mS Conductivity Standard Solution..CD-14
- Oxygen probe.............................OXPB-11
- Spare Probe head with Diaphragm set .....OXHD-04
- Probe-filling Electrolyte................OXEL-03
- AC to DC 9V adapter.
- RS232 cable, UPCB-02.
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN.
- Data Logger software, SW-DL2005.
電器規格
ELECTRICAL SPECIFICATIONS (23 ±5℃)
A.酸鹼度/氧化還原 (PH/mV)

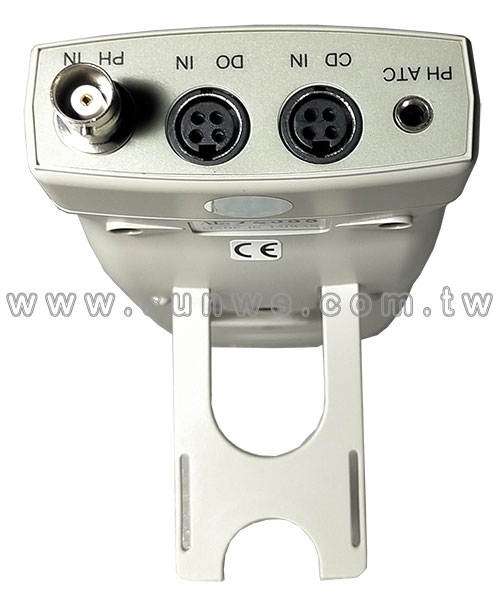

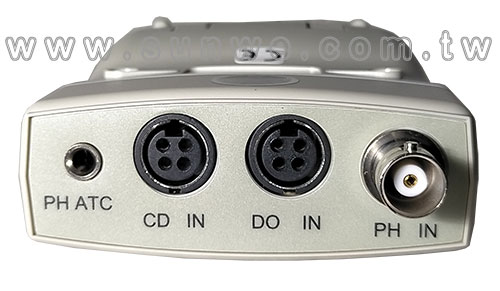

- PH Electrode : Optional, Any PH electrode with BNC connector.
- Measurement :
- PH : 0 to 14 PH
- mV : -1999 mV to 1999 mV
- Input Impedance : 10^12 ohm
- Temperature Compensation for pH measurement
- Manual : 0 to 100 ℃, be adjusted by push button on front panel.
- Automatic ( ATC ) : With the optional temperature probe ( TP-07 ) 0 to 65 ℃.
- pH Calibration : PH7, PH4, and PH10, 3 points calibration ensure the best linearity and accuracy.
| Measurement |
Range |
Resolution |
Accuracy |
| PH |
0 to 14 PH |
0.01 PH |
± (0.02 PH + 2 d) |
| mV |
0 to 1999 mV |
1 mV |
± (0.5% + 2 d) |
- * PH accuracy is based on calibrated meter only.
B.電導度 (Conductivity)
- Conductivity probe : Optional, Carbon rod electrode for long life.
- Function
- * Conductivity ( uS, mS )
- * TDS ( Total Dissolved Solids, PPM )
- * Temperature ( ℃,℉)
- Temperature Compensation :
- Automatic from 0 to 60 ℃ (32 - 140 ℉), with temperature compensation factor variable between 0 to 5.0% per C.
- Probe Operating Temperature : 0 to 60 ℃.
- Probe Dimension : Round, 22 mm Dia. x 120 mm length.
- Optional probe and accessories
- * Conductivity probe..........................CDPB-03
- * 1.413 mS Conductivity Standard Solution.....CD-14
1.電導度 Conductivity ( uS, mS )
| Range |
Measuring values |
Resolution |
Accuracy |
| 200 uS |
0.1 uS to 199.9 uS. |
0.1 uS |
± (2 % F.S. + 1 d) * F.S. - Full scale |
| 2 mS |
0.2 mS to 1.999 mS. |
td align="center" height="40">0.001 mS
| 20 mS |
2 mS to 19.99 mS |
0.01 mS |
| 200 mS |
20 to 200.0 mS |
0.1 mS |
總固體溶解量 TDS ( Total Dissolved Solids )
| Range |
Measurement |
Resolution |
Accuracy |
| 200 PPM |
0 to 132 PPM |
0.1 PPM |
± (2% F.S.+1d) * F.S. - Full scale |
| 2,000 PPM |
132 to 1,320 PPM |
1 PPM |
| 20,000 PPM |
1,320 to 13,200 PPM |
10 PPM |
| 200,000 PPM |
13,200 to 132,000 PPM |
100 PPM |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
* PPM - parts per million 溫度 (Temperature)
| Function |
Measuring Range |
Resolution |
Accuracy |
| ℃ |
0 ℃ to 60 ℃ |
0.1 ℃ |
0.8 ℃ |
| ℉ 3 |
2 ℉ to 140 ℉ |
0.1 ℉ |
1.5 ℉ |
C.溶氧
- Oxygen Probe : Optional, The polarographic type oxygen probe with
- Measurement & Range
- Dissolved Oxygen : 0 to 20.0 mg/L ( liter )
- Oxygen in Air : 0 to 100.0 %.
- Temperature : 0 to 50 ℃.
- Resolution
- Dissolved Oxygen : 0.1 mg/L.
- Oxygen in Air : 0.1 % O2 .
- Temperature : 0.1 ℃.
- Accuracy (23± 5 ℃)
- Dissolved Oxygen : ± 0.4 mg/L.
- Oxygen in Air : ± 0.7% O2.
- Temperature : ± 0.8 ℃/1.5 ℉.
- Probe Compensation & Adj.
- Temperature : 0 to 50 ℃,Automatic
- Salt : 0 to 39 %
- Salt Height ( M. T.) : 0 to 8900 meter
- Probe Weight : 335 g/0.74 LB ( batteries & probe included )
- Probe Size : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )
- Optional Accessories
- * Oxygen probe.................................OXPB-11
- * Spare Probe head with Diaphragm set ........ OXHD-04
- * Probe-filling Electrolyte................... OXEL-03
|
