BWA-2018SD
記憶式桌上型水質檢測儀
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 :
- 溶氧：0 ~ 20.0 mg/L.±0.4
mg/L
- 氧氣：0 ~ 100.0%.±0.7%
酸鹼度 : 0 ~ 14.00 PH.±0.02
PH
- 電導度 : 0.1 μS ~ 199.9 mS.±2%
(滿刻度)
- 總固體溶解量 : 0.1 ~ 132000ppm.±2%
(滿刻度)
- 硬度 : 0.01 ~ 100000 ppm.±2%
(滿刻度)
- 鹽分範圍 : 0 ~ 12.00%.±5%
電阻 : 5 ~
99.99MΏ/cm ±2%
(滿刻度)
- 溫度 : 0 ~ 60.0ºC ±0.8ºC
- 可記錄最大值,最小值及讀值鎖定功能.
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 290 x 220 x 90mm.
FEATURES
- Bench type Water quality METER
- Multi-function : pH/ORP, Salt
Conductivity/TDS/Hardness/Resistivity, Dissolved oxygen.
- pH : 0 to 14.00 pH.
- ORP ( mV ) : 1,999 mV.
- Conductivity : 20 uS/200 uS/2 mS/20
mS/200 mS.
- TDS : 13.20/132/1,320/13,200/132,000
ppm.
- Hardness : 10/100/1,000/10,000/100,000
ppm.
- Resistivity : 5 ohm-cm to 99.99 M
ohm-cm.
- Salt : 0 to 12.0% salt ( % weight ).
- Dissolved oxygen : 0 to 20.0 mg/L.
- pH measurement can make the auto calibration
for pH 7, pH 4 and pH 10 or other value.
- Conductivity measurement can select Temp.
Coefficient of measurement solution.
- Dissolved oxygen meter use the polar graphic
type oxygen probe with temperature sensor, high precision measurement for
Dissolved Oxygen ( DO ) and temperature measurement.
- Heavy duty dissolved oxygen probe, probe head
can connect with BOD bottle.
- DO meter build in " % SALT " & " Mountain
Height " compensation value adjustment.
- Separate probe, easy for operation of
different measurement environment.
- Wide applications: water conditioning,
aquariums, beverage, fish hatcheries, food processing, photography,
laboratory, paper industry, plating industry, quality control, school &
college, water
- RS232/USB PC computer interface.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power
off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- ATC ( automatic temperature compensation ).
- Data hold, Record ( Max., Min. ).
- RS232/USB computer interface.
- SD card capacity : 1 GB to 16 GB.
- Pt glass electrode, CDPB-04 is included,
available forConductivity/TDS/Hardness/Resistivity/Salt, high performance
for pure water low conductivity measurement.
- Power by DC 1.5 V ( AA/UM-3 alkaline type )
battery x 6 PCs or DC 9V adapter in.
- Optional electrodes : pH electrode, ORP
electrode, Dissolved oxygen probe, pH ATC probe ( TP-07 ).
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.

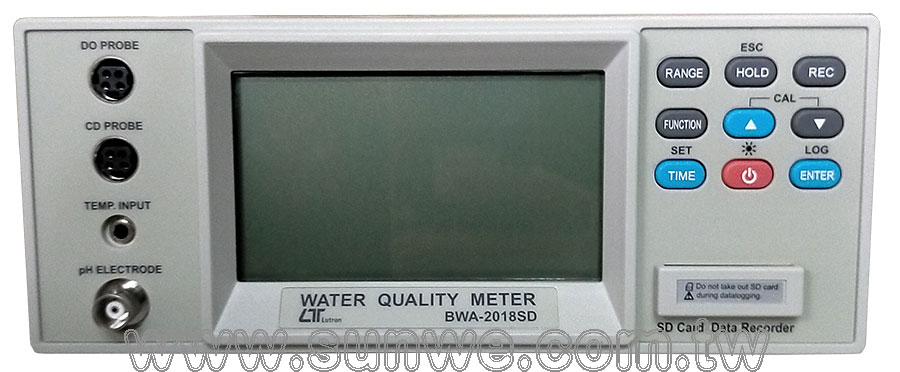

顯示 (Display)
- LCD size : 56 mm x 97 mm
- LCD with green backlight ( ON/OFF ).
測量功能 (Measurement
Function)
- PH/ORP
- Conductivity/TDS(Total Dissolved Solids)
- Resistivity :
- Dissolved Oxygen
- Salt
優越的設定 (Advanced setting)
- * Auto power OFF management
* Set beep Sound ON/OFF
* Set temperature unit to ℃ or ℉
* Set DO salt% compensation value
* Set DO height ( meter ) compensation value
* Set DO height ( feet ) compensation value
* Set CD temperature compensation factor
* Set CD to TDS or TDS to CD, CD only
* Set pH manual Temp. compensation value
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)

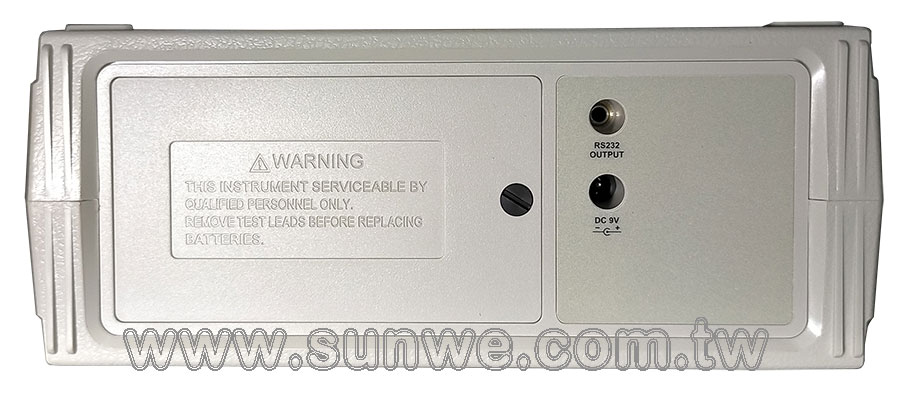

- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * If LCD backlight on, the power consumption will
increase approx. 5 mA.
重量 (Weight)
- 1400 g/3.08 LB.
尺寸 (Size)
- 290 x 220 x 90 mm ( 11.5 x 8.7x 3.6 inch ) * Meter
only

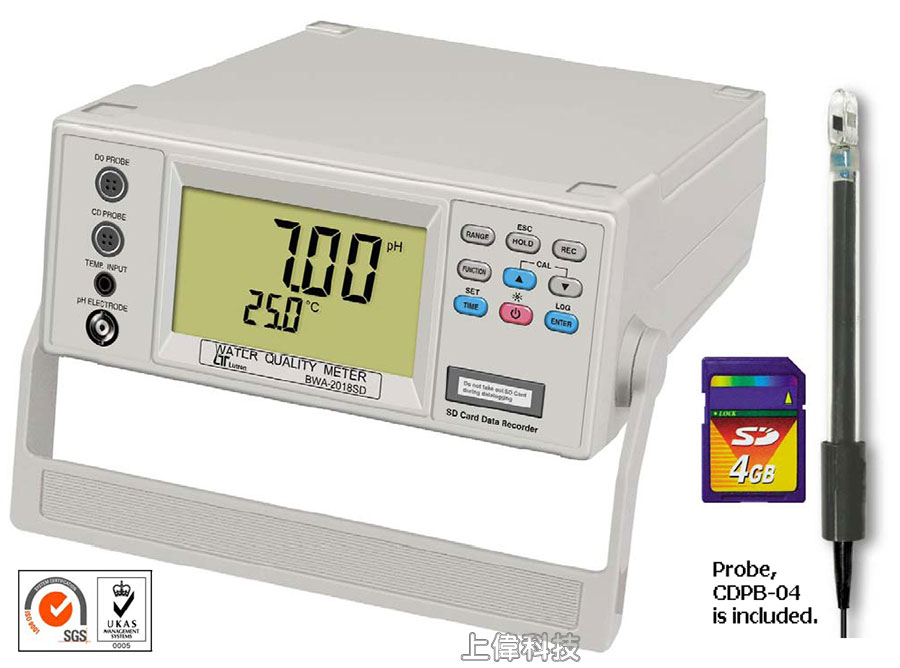

附件 (Standard Accessory)
- Instruction manual.......................... 1 PC
- Pt glass electrode, CDPB-04.......... 1 PC
It is available forConductivity/TDS/Hardness/Resistivity/Salt,
high performance for pure water low conductivity measurement.
選購附件 (Optional & accessories Temp. Probe)
- PH electrode...PE-03, PE-11, PE-01, PE06HD,
PE-06HDA, PE-04HD, PE-03K7, PE-02, PE-08, PE-21.
- ATC ( Automatic Temperature Probe )..... TP-07
- pH 7 buffer solution.................... PH-07
- pH 4 buffer solution.................... PH-04
- 1.413 mS Conductivity Standard Solution..CD-14
- Oxygen probe.............................OXPB-11
- Spare Probe head with Diaphragm set .....OXHD-04
- Probe-filling Electrolyte................OXEL-03
- ORP Electrode........................... ORP-14,
ORP-15
- AC to DC 9V adapter.
USB cable, USB-01.
RS232 cable, UPCB-02.
Data Acquisition software,SW-U801-WIN.
SD memory card ( 4 GB )
電器規格
ELECTRICAL SPECIFICATIONS (23 ±5℃)
酸鹼度/氧化還原 (PH/ORP)
- PH Electrode :
- Optional, Any PH electrode with BNC connector.
- Measurement :
- PH : 0 to 14 PH
- mV : -1999 mV to 1999 mV
- Input Impedance : 10^12 ohm
- Temperature Compensation for pH measurement
- Manual : 0 to 100 ℃, be adjusted by push button on front panel.
- Automatic ( ATC ) : With the optional temperature probe ( TP-07 ) 0 to 65 ℃.
- pH Calibration :
- PH7, PH4, and PH10, 3 points calibration ensure the best linearity and accuracy.
- Optional probe and accessories
- * PH electrode...PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-05T, PE-03K7
- * ATC ( automatic temperature probe ).............TP-07.
- * pH 7 buffer solution............................PH-07
- * pH 4 buffer solution............................PH-0.4
- * ORP electrode...................................ORP-14
- * 1.413 mS Conductivity Standard Solution.........CD-14,
ORP-15
| Measurement |
Range |
Resolution |
Accuracy |
| PH |
0 to 14 PH |
0.01 PH |
± (0.02 PH + 2 d) |
|
mV ( ORP ) |
-1999 to 1999 mV |
1 mV |
± (0.5% + 2 d) |
- * PH accuracy is based on calibrated meter only.
電導度 Conductivity ( uS, mS )
| Range |
Measuring values |
Resolution |
Accuracy |
| 200 uS |
0 to 200.0 uS |
0.1 uS |
± (2 % F.S. + 1 d) * F.S. - Full scale |
| 2 mS |
0.2 to 2.000 mS. |
0.001 mS |
| 20 mS |
2 to 20.00 mS |
0.01 mS |
| 200 mS |
20 to 200.0 mS |
0.1 mS |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
*mS - milli Simens
* @ 23± 5℃
總固體溶解量 TDS ( Total Dissolved Solids )
| Range |
Measurement |
Resolution |
Accuracy |
| 200 PPM |
0 to 132 PPM |
0.1 PPM |
± (2% F.S.+1d) * F.S. - Full scale |
| 2,000 PPM |
132 to 1,320 PPM |
1 PPM |
| 20,000 PPM |
1,320 to 13,200 PPM |
10 PPM |
| 200,000 PPM |
13,200 to 132,000 PPM |
100 PPM |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under
measurement value ≦ 100 mS.
* PPM - parts per million
* Probe, CDPB-04 is included as
the standard accessory
溫度 (Temperature)
| Function |
Measuring Range |
Resolution |
Accuracy |
| ℃
|
0 ℃ to 60 ℃ |
0.1 ℃ |
0.8 ℃ |
| ℉ |
32 ℉ to 140 ℉ |
0.1 ℉ |
1.5 ℉ |
鹽份計 (Salt)
- Conductivity probe : Pt glass electrode,
CDPB-04 is included.
- Measurement Range : 0 to 12 % salt ( % weight ).
- Resolution : 0.01 % salt.
- Accuracy : 0.5 % salt value @ 23± 5 ℃
- Temperature Compensation : Automatic from 0 to 60 ℃ (32 - 140 ℉)
- Probe Operating Temperature : 0 to 60 ℃.
硬度 (
Hardness )
|
Range |
Measurement |
Resolution |
Accuracy |
| 10 PPM |
0 to 10.00 PPM |
0.01 PPM |
± (2% F.S.+1d)
* F.S. - Full scale |
| 100 PPM |
0 to 100 PPM |
0.1 PPM |
| 1,000 PPM |
100 to 1,000 PPM |
1 PPM |
| 10,000 PPM |
1,000 to 10,000 PPM |
10 PPM |
| 100,000 PPM |
10,000 to 100,000 PPM |
100 PPM |
* Probe, CDPB-04 is included as the standard
accessory
電阻 (Resistivity)
| Range |
Measurement |
Resolution |
Accuracy |
| auto range |
5 ohm-cm to 99.99 M
ohm-cm |
1 ohm-cm to 0.01 M
ohm-cm |
± (2% F.S.+1d) * F.S. - Full scale |
* Probe, CDPB-04 is included as the standard accessory
溶氧 (Dissolved oxygen)
- Oxygen Probe :
- Optional, The polarographic type oxygen probe with Measurement & Range
- Dissolved Oxygen : 0 to 20.0 mg/L ( liter ).
- Oxygen in Air : 0 to 100.0 %.
- Temperature : 0 to 50 ℃.
- Resolution
- Dissolved Oxygen : 0.1 mg/L.
- Oxygen in Air : 0.1 % O2 .
- Temperature : 0.1 ℃.
- Accuracy (23± 5 ℃)
- Dissolved Oxygen : ± 0.4 mg/L.
- Oxygen in Air : ± 0.7% O2.
- Temperature : ± 0.8 ℃/1.5 ℉.
- Probe Compensation & Adj.
- Temperature : 0 to 50 ℃, Automatic
- Salt : 0 to 50 % Salt
- Height ( M. T.) : 0 to 8900 meter
- Probe Weight : 335 g/0.74 LB ( batteries & probe included )
- Probe Size : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )
- Optional Accessories
- * Oxygen probe.................................OXPB-11
- * Spare Probe head with Diaphragm set ........ OXHD-04
- * Probe-filling Electrolyte................... OXEL-03
|
