TU-2016
攜帶式濁度計
特色
- 測量範圍 :
- 0 ~ 50.00NTU
- 50 ~ 1000NTU
- 精確度 : ±5%F.S 或 ±0.5NTU
- 光源：發光二極體，波長850nm
- 光源偵測：光電管
- 符合ISO7027規範
- 校正點：0NTU，100NTU
- 取樣容量：10mL
- 可記錄最大值,最小值及讀值鎖定
- Size : 155 x 76 x 62mm
FEATURES
- Designed to meet ISO 7027.
- NTU ( Nephelometric TURBIDITY Unit ) measuring unit.
- Wide and auto measurement range : 0 to 1,000 NTU.
- High resolution : 0.01 NTU/1 NTU.
- The unique optics structure, enables the instrument to read low value of TURBIDITY to the high level up to 1,000 NTU.
- Four operation buttons and two calibration points, easy operation.
- Jumbo LCD, easy readout.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Battery operated for field and on-site testing convenience.
- Data hold function for freezing the desired value on display.
- Records Maximum and Minimum readings with Recall.
- Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
- Auto shut off is available to save battery life.
- Application : Test municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 41 mm x 34 mm
範圍 (Range)
- 0.00 to 50.00 NTU
- 50 to 1,000 NTU
- * NTU : Nephelometric Turbidity Unit
- * Auto range
解析度 (Resolution)
- 0.01 NTU/ 1 NTU
精確度 (Accuracy)
- ± 5 % F.S. or ± 0.5 NTU, which ever is greater.
光源 (Light source)
- LED, 850 nm.
光源偵測器 (Light detector)
- Photo diode
標準 (Standard)
- Meet ISO 7027.
反應時間 (Response time)
- Less than 10 seconds.
樣品音量 (Sample volume)
- 10 mL.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
校正點 (Calibration points)
- 0 NTU, 100 NTU.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 6 PCs, or equivalent.
電源電流 (Power Current)
- Stand by : Approx. DC 3.5 mA.
- Testing : Approx. DC 36 mA.
重量 (Weight)
- 320 g/0.70 LB. @ Battery is included.
尺寸 (Size)
- 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)

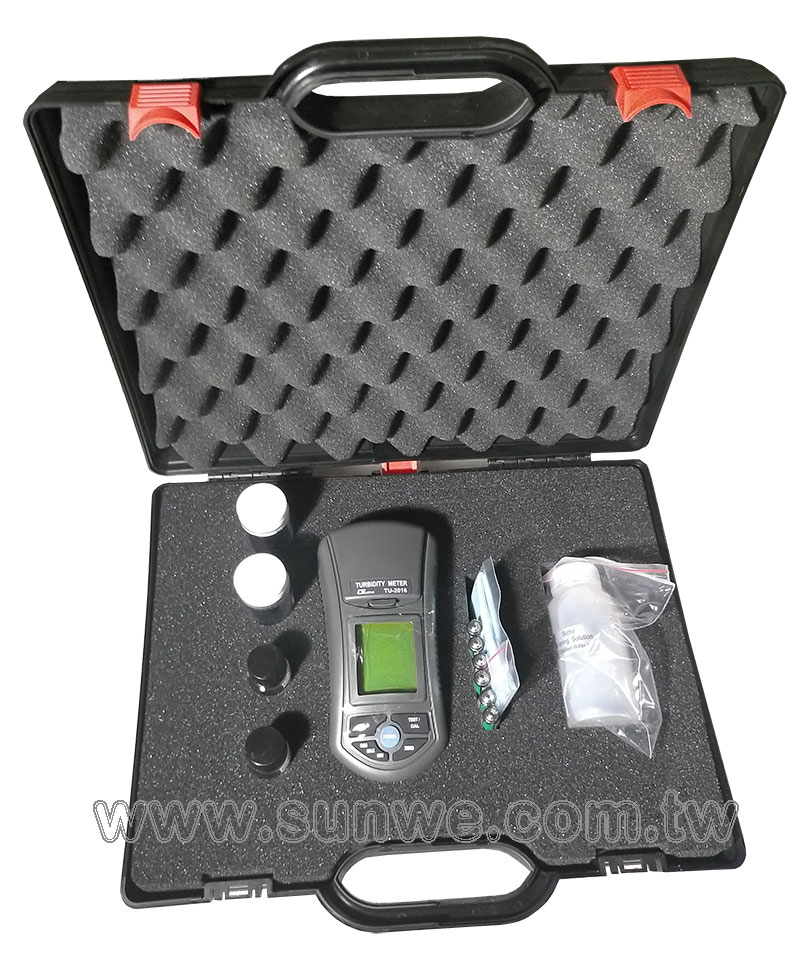

附件 (Standard Accessory)
- Testing bottle with 0 NTU standard solution............1 PC
- Testing bottle with 100 NTU standard solution......... 1 PC
- Empty testing bottle.................................. 2 PCs
- Clean cloth............................................1 PC
- Clean solution ( Distill water ).......................1 bottle
- Hard carrying case, CA-08..............................1 PC
選購附件 (Optional & accessories Temp. Probe)
- Testing bottle with 100 NTU standard solution, TU-100NTU
- Testing bottle with 0 NTU standard solution, TU-0NTU
- Empty testing bottle, 0601
|
