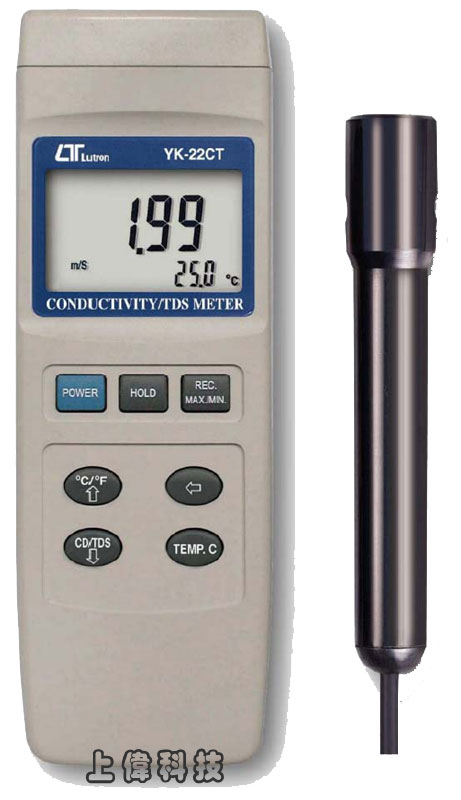

YK-22CT
電導/總固體溶解量測試計
特色
- 測量範圍 :
- 電導 :
- 0.2 ~ 2 mS
- 2 ~ 20 mS ±3%
- TDS :
- 0 ~ 2000
- 10 ~ 20000ppm ±3%
- 溫度 :
- 0 ~ 60.0 ºC ± 0.8 ºC
- 具有自動溫度補償功能
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 200 x 68 x 30 mm.
FEATURES
- 2 in 1, professional Conductivity and TDS ( Total Dissolved Solids ) Meters.
- Conductivity meter is included two ranges : 2 mS, 20 mS. TDS meter is with 2 ranges : 2,000 PPM, 20,000 PPM. Temperature measurement range is 0 - 60 ℃ / 32 - 140℉
- Conductivity/TDS meter build in automatic temperature compensation circuit, adjustable between 0 to 5.0% per ℃.
- Conductivity/TDS meter use carbon rod electrode for long life, sepearte pobe convenient for remote measurement.
- Microprocessor circuit, intelligent function.
- Records Maximum and Minimum readings with recall.
- Data hold.
- Auto shut off saves battery life.
- RS 232 PC serial interface.
- Temperature function with ℃ & ℉ display unit.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- 51 mm x 32 mm, dual function LCD display, 15 mm ( 0.6" ) digit size.
- dual function LCD display,
測量 (Measurement)
- * Conductivity
- * TDS ( Total Dissolved Soloids )
- * Temp.
記憶回叫 (Memory Recall)
- Records Maximum, Minimum and Average readings with RECALL.
資料鎖定 (Data hold)
- Hold the reading value on the display.
關機 (Power off)
- Auto shut off saves battery life, or manual off by push button.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
過載指示 (Over input Indication)
- "- - - -" symbol on the display.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
操作溫度 (Operating Temp.)
- 0 to 50 ℃ - main instrument.
- 0 to 60 ℃ - Conductivity/CT probe only.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Heavy duty type, 006P DC 9V battery MN1604 ( PP3 ) or equivalent.
電源電流 (Power Current)
- Approx. DC 6.0 mA. Approx. DC 4.2 mA.
重量 (Weight)
- 210 g/0.46 LB ( meter only ).
- 290 g/0.64 LB ( meter and probe ).
體積 (Dimension)
- Main instrument : 195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch ).
- Conductivity/TDS probe : Round, 22 mm Dia. x 120 mm length.
附件 (Standard Accessory)
- Conductivity/TDS probe, YK-200PCT...1 PC.
- Operation manual................... 1 PC.
- Carrying case, CA-06................1 PC.
選購附件 (Optional accessories)
- 1.413 mS Conductivity Standard Solution...CD-14
- RS232 cable,............................. UPCB-02
- USB cable,................................USB-01
- Application Software......................SW-U801-WIN
電器規格
ELECTRICAL SPECIFICATIONS (23 ±5℃)
電導度/總固體計規格 Conductivity/TDS meter specifications
| Measurement |
Range |
Resolution |
Accuracy |
| Conductivity |
2 mS ( 0 to 2,000 mS ) |
0.001 mS |
± ( 3 % F.S. + 1 d ) * F.S. - Full scale |
| 20 mS (2 to 20.00 mS ) |
0.01 mS |
| TDS |
2,000 PPM ( 0 to 1,320 PPM ) |
1 PPM |
| 20,000 PPM ( 1,320 to 13,200 PPM ) |
10 PPM |
| Temperature |
0 ℃ to 60 ℃ |
0.1 ℃ |
± 0.8 ℃ |
| 32 ℉ to 140 ℉ |
0.1 ℉ |
± 0.8 ℃ |
-
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* mS - milli Simens
* PPM - parts per million
應用 (APPLICATION)
- *AQUARIUMS * FOOD PROCESSING * PAPER INDUSTRY * SCHOOLS & COLLEGES
* BEVERAGE * PHOTOGRAPHY * PLATING INDUSTRY * SWIMMING POOLS
* FISH HATCHERIES * LABORATORY * QUALITY CONTROL * WATER CONDITIONING
|
