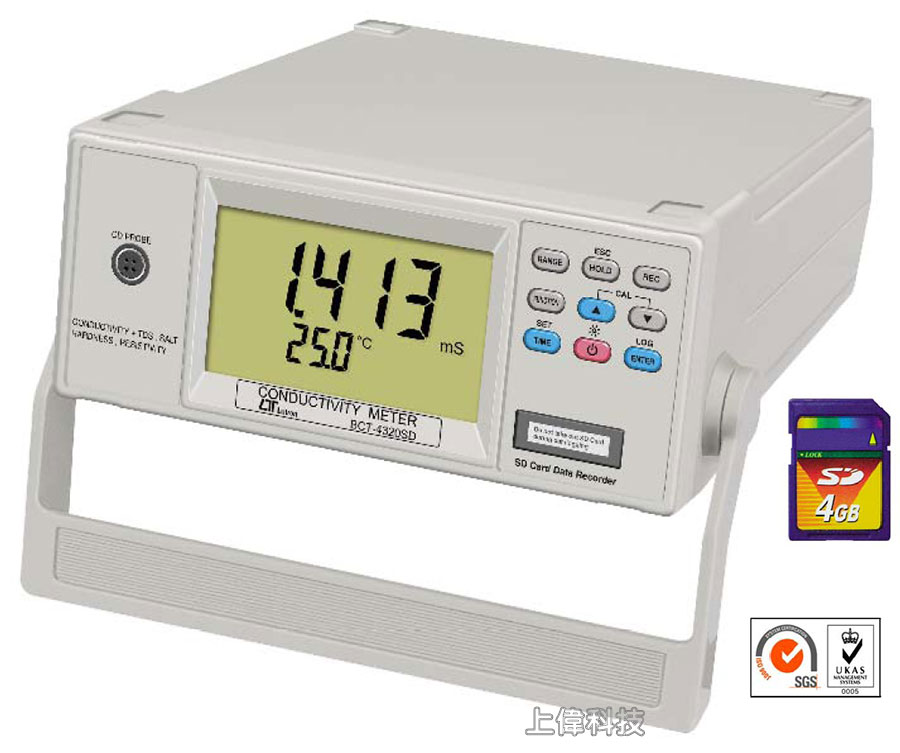

BCT-4320SD
記憶式桌上型電導計

特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 做圖表分析 (記憶卡選購)
- 電導範圍 : 0.01 μS~ 19.99
mS (滿刻度)
- 總固體溶解量 : 0.01 ~ 13.2000 ppm
(滿刻度)
- 硬度 : 0.01 ~ 100000 ppm (滿刻度)
- 鹽份 : 0 ~ 12.00% ±5%
- 電阻 : 5 ~
99.99MΏ/cm ±2%
(滿刻度)
- 溫度 :0 ~ 60.0ºC ±0.8ºC
- 可記錄最大值,最小值及讀值鎖定功能.
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 290 x 220 x 90mm.
FEATURES
- Bench type CONDUCTIVITY METER
- Multi-function : Conductivity, TDS,
Hardness, Resistivity, Salt.
- Conductivity : 20 uS/200 uS/2 mS/20
mS/200 mS.
- TDS : 13.20/132/1,320/13,200/132,000
ppm.
- Hardness : 10/100/1,000/10,000/100,000
ppm.
- Resistivity : 5 ohm-cm to 99.99 M
ohm-cm.
- Salt : 0 to 12.0% salt ( % weight ).
- Dissolved oxygen : 0 to 20.0 mg/L.
- Real time SD memory card Data logger, it
Built-in Clock and Calendar, real time data recorder , sampling time set
from 1 sec to 8 hour 59 min. 59 sec.
- Innovation and easy operation, computer is not
need to setup extra software, after execute data logger, just take away the
SD card from the meter and plug in the SD card into the computer, it can
down load the all the measured value with the time information (
year/month/date/hour/minute/second ) to the Excel directly, then user can
make the further data or graphic analysis by themselves.
- Conductivity measurement can select Temp.
Coefficient of measurement solution.
- Separate probe, easy for operation of
different measurement environment.
- Wide applications: water conditioning,
aquariums, beverage, fish hatcheries, food processing, photography,
laboratory, paper industry, plating industry, quality control, school &
college, water
- RS232/USB PC computer interface.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power
off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- ATC ( automatic temperature compensation ).
- Data hold, Record ( Max., Min. ).
- RS232/USB computer interface.
- SD card capacity : 1 GB to 16 GB.
- Pt glass electrode, CDPB-04 is included,
available forConductivity/TDS/Hardness/Resistivity/Salt, high performance
for pure water low conductivity measurement.
- Power by DC 1.5 V ( AA/UM-3 alkaline type )
battery x 6 PCs or DC 9V adapter in.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 56 mm x 97 mm
- LCD with green backlight ( ON/OFF ).
測量 (Measurement Function)
- * Conductivity ( uS, mS )
- * TDS ( Total Dissolved Solids, PPM )
- * Hardness
- * Resistivity
- * Salt ( % Weight )
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1,
2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds.
- @ Sampling time can set to 1 second, but memory
data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Set temperature unit to ℃ or ℉
- * Set CD temperature compensation factor
- * Set CD to TDS or TDS to CD, CD only
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間
(Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD
Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 34 mA.
- * If LCD backlight on, the power consumption will
increase approx. 5 mA.
重量 (Weight)
- 1400 g/3.08 LB.
體積 (Dimension)
- 290 x 220 x 90 mm ( 11.5 x 8.7x 3.6 inch ) * Meter
only
附件 (Standard Accessory)
- * Instruction manual.......................1 PC
- * Pt glass electrode, CDPB-04.......... 1 PC
- It is available forConductivity/TDS/Hardness/Resistivity/Salt,
high performance for pure water low conductivity measurement.
電導度 Conductivity ( uS, mS )
Range |
Measuring values |
Resolution |
Accuracy |
200 uS |
0 uS to 200.0 uS. |
0.1 uS |
± (2 % F.S. + 1 d) * F.S. - Full scale |
2 mS |
0.2 mS to 2.000 mS. |
0.001 mS |
20 mS |
2 mS to 20.00 mS |
0.01 mS |
200 mS |
20 to 200.0 mS |
0.1 mS |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
*mS - milli Simens * @ 23± 5℃
總固體溶解量 TDS ( Total Dissolved Solids )
Range |
Measurement |
Resolution |
Accuracy |
200 PPM |
0 to 132 PPM |
0.1 PPM |
± (2% F.S.+1d) * F.S. - Full scale |
2,000 PPM |
132 to 1,320 PPM |
1 PPM |
20,000 PPM |
1,320 to 13,200 PPM |
10 PPM |
200,000 PPM |
13,200 to 132,000 PPM |
100 PPM |
* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under
measurement value ≦ 66,000 PPM.
* PPM - parts per million
溫度 (Temperature)
Function |
Measuring Range |
Resolution |
Accuracy |
℃
|
0 ℃ to 60 ℃ |
0.1 ℃ |
0.8 ℃ |
℉ 3 |
32 ℉ to 140 ℉ |
0.1 ℉ |
1.5 ℉ |
鹽份計 (Salt)
- Probe : Pt glass electrode, CDPB-04 is
included.
- Measurement Range :
0 to 12 % salt ( % weight )
- Resolution : 0.01 % salt.
- Accuracy : 0.5 % salt value * F.S. : full scale.
- Temperature Compensation :
Automatic from 0 to 60 ℃ (32 - 140 ℉ ),
- Probe
Operating Temperature : 0 to 60 . ℃
硬度 (
Hardness )
Range |
Measurement |
Resolution |
Accuracy |
10 PPM |
0 to 10.00 PPM |
0.01 PPM |
± (2% F.S.+1d) * F.S. - Full scale |
100 PPM |
0 to 100 PPM |
0.1 PPM |
1000 PPM |
100 to 1,000 PPM |
1 PPM |
10,000 PPM |
1,000 to 10,000 PPM |
10 PPM |
100,000 PPM |
10,000 to 100,000 PPM |
100 PPM |
* Probe, CDPB-04 is included as the standard
accessory
電阻 (Resistivity)
Range |
Measurement |
Resolution |
Accuracy |
auto range |
5 ohm-cm to 99.99 M
ohm-cm |
1 ohm-cm to 0.01 M
ohm-cm |
± (2% F.S.+1d) * F.S. - Full scale |
* Probe, CDPB-04 is included as the standard accessory
|
