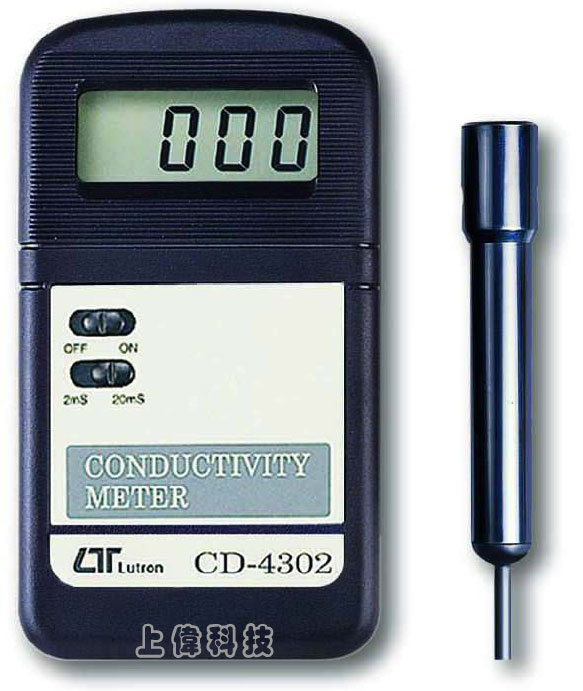

CD-4302
迷你型電導度計
特色
- 測量範圍 :
- 0.001 ~ 1.999mS
- 2 ~ 19.99mS
- 精確度 : ±2% (滿刻度)
- 具有自動溫度補償功能
- 體積小'攜帶方便
- Size : 131 x 70 x 25 mm
FEATURES
- Pocket size, easy to carry out.
- Separate electrode, easy operation.
- The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.
- Multi measuring ranges:
1.999 mS, 19.99 mS.
- LCD display for low power consumption & clear read-out even in bright ambient light condition.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Built-in Low battery indicator.
- Wide applications: water contioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college.
一般規格
顯示 (Display)
- 13 mm (0.5") LCD, 3 1/2 digits, max. display 1999.
測量範圍 (Measurement Range)
- 2 ranges, 1.999 mS, 19.99 mS.
解析度 (Resolution)
- 0.001 mS for 1.999 mS range.
- 0.01 mS for 19.99 mS range.
- * mS - milli Simens
精確度 (Accuracy)
- ± ( 2% F.S. + 1 d ).
- * 23± 5 ℃
- * F.S. : full scale
過載指示 (Over Range Indicator)
- Display shows '1'.
取樣時間 (Sampling Time)
- Approx. 0.4 sec
溫度補償 (Temperature Compensation)
- Automatic, 0 to 50 ℃ (32 to 122 ℉).
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- DC 9V battery (heavy duty type). 006P, MN1604(PP3) or equivalent.
電源電流 (Power Current)
- Approx. DC 5 mA
重量 (Weight)
- 220 g/0.48 LB ( w/battery & electrode ).
體積 (Dimension)
- meter : 131 x 70 x 25 mm ( 5.2 x 2.8 x 1.0 inch ).
- electrode : Round, 22 mm Dia. x 120 mm length.
附件 (Standard Accessory)
- Instruction Manual............................ 1 PC.
- Conductivity electrode........................ 1 PC.
- Carrying Case................................. 1 PC.
選購附件 (Optional Accessory)
- 1.413 mS calibration solution................ CD-14
- Accessories Carrying Case.................... CA-03
|
