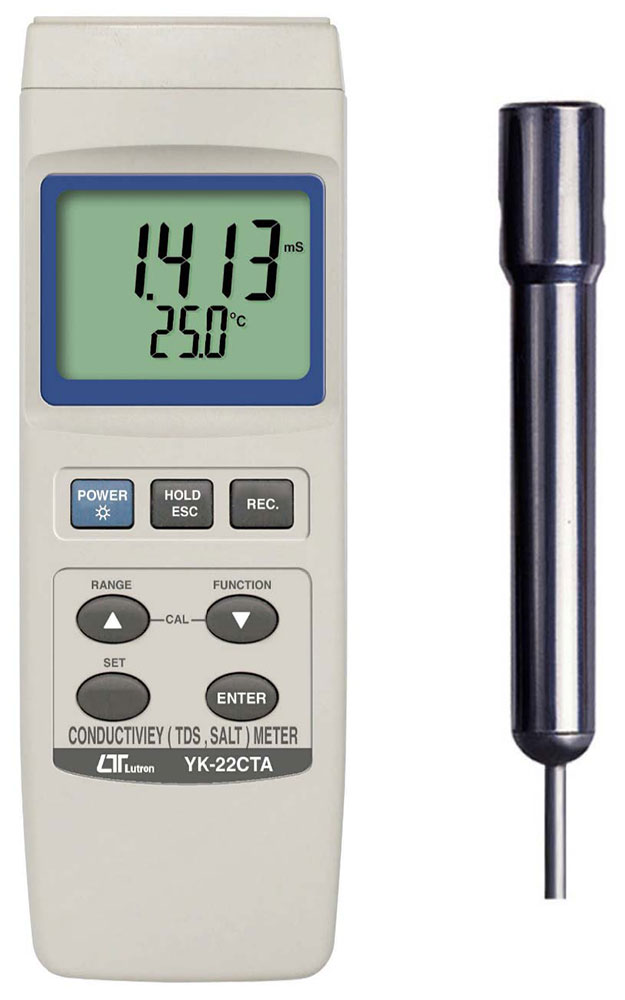

YK-22CTA
電導度/TDS/鹽度計

- YK-22CTA可用作:CD、TDS、鹽分測量。
- 電導度:200 uS/2 mS/20 mS/200 mS。
- 鹽 : 0 至 12 %。
- 電導度測量可以選擇 uS/mS 或 TDS
- 電導度測量可以選擇溫度係數測量溶液。
- 用於電導度測量的 ATC。
- 同時測量電導度和溫度。
- 獨立探頭,易於在不同測量環境中作。
- 廣泛應用:水調節,水族館,飲料,魚類孵化場,食品加工,攝影,實驗室,造紙工業,電鍍工業,品質控制,學校和學院,水調節。
- 帶綠燈背光的 LCD,易於閱讀。
- 可以預設自動關機或手動關機。
- 資料鎖定、記錄最大和最小讀數。
- 微電腦電路,精度高。
- 由 UM3/AA ( 1.5 V ) x 6 電池或 DC 9V
變壓器供電。
- RS232/USB PC 電腦介面。
特色
- YK-22CTA 多參數水質計可提供各種參數的準確可靠的測量,使其成為水調節、水族館、食品加工等應用的必備工具。
- 多參數測量:測量電導度、TDS、鹽分,提供全面的測試能力。
- 自動溫度補償:內建溫度感測器提供0℃至60℃(32℉至140℉)的自動溫度補償(ATC),確保讀數精確。
- 測量範圍廣:提供電導度(0 至 200 mS)、TDS(0 至 200,000 PPM)和鹽分(0 至 12% 重量)的寬範圍。
- 使用者友善功能:包括資料保持、最大值和最小值記憶呼叫以及自動關機功能以節省電池壽命。
- RS232/USB接口:配備RS232和USB接口,可輕鬆將資料傳輸至計算機,方便進一步分析和記錄。
FEATURES
- * One meter for one purpose operation : CD, TDS, Salt measurement.
- * Conductivity : 200 uS/2 mS/20 mS/200 mS.
- * Salt : 0 to 12 % salt ( % weight ).
- * Conductivity measurement can select uS/mS or TDS
- * Conductivity measurement
can select Temp. Coefficient of measurement solution.
- * ATC for the conductivity measurement.
- * Measurement for conductivity and temperature
at same time.
- * Separate probe, easy for operation of different
measurement environment.
- * Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
- * LCD with green light backlight, easy reading.
- * Can default auto power
off or manual power off.
- * Data hold, record max. and min. reading.
- * Microcomputer circuit, high accuracy.
- * Power by UM3/AA ( 1.5 V )
x 6 batteries or DC 9V
adapter.
- * RS232/USB PC COMPUTER interface.
說明
- 測量範圍:
- 電導率:
- 0至200 µS
- 0.2 至 2.000 毫秒
- 2 至 20.00 毫秒
- 20 至 200.0 毫秒
- 總固體廢棄物(TDS):
- 0至132 PPM
- 132 至 1,320 PPM
- 1,320 至 13,200 PPM
- 13,200 至 132,000 PPM
- 鹽:0 至 12% 鹽(以重量計)
- 解析度:
- 電導率:0.1 µS、0.001 mS、0.01 mS、0.1 mS
- 總溶解固體 (TDS):0.1 PPM、1 PPM、10 PPM、100 PPM
- 鹽:0.01%鹽
- 準確性:
- 電導率:±2%FS+1d
- TDS:±2%FS + 1d
- 鹽度:±0.5% 鹽值
- 顯示器:LCD 尺寸 52 毫米 x 38 毫米,綠色背光
- 溫度補償:自動從 0℃ 至 60℃(32℉ 至 140℉),每℃可變係數在 0 至 5.0% 之間
- 工作溫度:0℃至50℃(32℉至122℉)
- 工作濕度:小於85%RH
- 電源:DC 1.5V 電池 (UM-3, AA) x 6 或 DC 9V
變壓器
- 尺寸:177 x 68 x 45 毫米(7.0 x 2.7 x 1.9 英吋)
- 重量:489公克(1.08磅)
- 附配件:
- 使用說明書
- 硬質攜帶包(CA-06)
- 電導率/TDS/鹽度探頭(CDPB-03)
- 選購配件:
- Pt 電導率/TDS/鹽度探頭 (CDPB-04)
- 1.413 mS 電導率標準溶液 (CD-14)
- AC 至 DC 9V 變壓器
- USB電纜(USB-01)
- RS232 電纜(UPCB-02)
- 數據採集軟體(SW-U801-WIN)
- Excel 資料擷取軟體(SW-e802)
- 多種應用:非常適合用於水族館、飲料業、魚孵化場、食品加工、攝影、實驗室、造紙業、電鍍業、品質控制、學校、學院和水調節。
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI
circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量功能 (Measurement Function)
- Conductivity, Temperature,TDS(Total Dissolved Solids),Salt
卓越的設定 (Advanced setting)
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set temperature unit to ℃ or℉
- * Set CD temperature compensation factor
- * Set CD to TDS or TDS to CD, CD only
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of Display)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
- 0 to 50 . ℃
操作濕度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- * Alkaline or heavy duty DC 9V ( 006 P ) battery or equivalent.
- * DC 9V adapter input. ( AC/DC power adapter is optional ).
耗電量 (Power Current)
- Normal operation ( LCD Backlight is OFF) :
Approx. DC 14 mA.
- * If LCD backlight on, the power
consumption will increase approx. 12 mA.
重量 (Weight)
- 489 g/1.08 LB.
儀表尺寸 (Meter Dimension)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Accessories Included)
- * Operation manual...........................1 PC
- * Hard carrying case, CA-06..................1 PC
- * Conductivity/TDS/Salt probe,CDPB-03........1 PC
選購附件 (Optional Accessories)
- * Pt Conductivity/TDS/Salt probe,CDPB-04.
- * 1.413 mS Conductivity Standard Solution, CD-14
- * AC to DC 9V adapter.
- * USB cable, USB-01
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U801-WIN.
- * Excel Data Acquisition software, SW-E802
電器規格
A. Conductivity/TDS
電導度探棒 (Conductivit probe)
- Carbon rod electrode for long life, CDPB-03
功能 (Function)
- * Conductivity ( uS, mS )
- * TDS ( Total Dissolved Solids, PPM )
- * Temperature ( ℃, ℉)
溫度補償 (Temperature Compensation)
- Automatic from 0 to 60℃ (32 - 140℉ ), with
temperature compensation factor variable between 0 to 5.0% per C.
探棒操作溫度 (Probe Operating Temp.)
- 0 to 60 . ℃
探棒尺寸 (Probe Dimension)
- Round, 22 mm Dia. x 120 mm length.
選購探棒及附件 (Optional probe and accessories)
- * Pt Conductivity/TDS/Salt probe, CDPB-04
- * 1.413 mS Conductivity Standard Solution,
CD-14
Conductivity ( uS, mS )
Range |
Measurement |
Resolution |
Accuracy |
200 uS |
0 to 200.0 uS |
0.1 uS |
± ( 2 % F.S. + 1 d ) * F.S. - Full scale |
2 mS |
0.2 to 2.000 mS |
0.001 mS |
20 mS |
2 to 20.00 mS |
0.01 mS |
200 mS |
20 to 200.0 mS |
0.1 mS |
* Temperature Compensation :
Automatic from 0 to 60℃ ( 32 - 140℉ ), with temperature compensation factor
variable between 0 to 5.0% per C.
* The accuracy is specified under
measurement value ≦100 mS.
*mS - milli Simens
*@ 23± 5℃
TDS ( Total Dissolved Solids )
Range |
Measurement |
Resolution |
Accuracy |
200 PPM |
0 to 132 PPM |
0.1 PPM |
± ( 2 % F.S. + 1 d ) * F.S. - Full scale |
2,000 PPM |
132 to 1,320 PPM |
1 PPM |
20,000 PPM |
1,320 to 13,200 |
PPM 10 PPM |
200,000 PPM |
13,200 to 132,000 |
PPM 100 PPM |
* Temperature Compensation :
Automatic from 0 to 60℃ ( 32 - 140℉ ), with temperature compensation factor
variable between 0 to 5.0% per C.
* The accuracy is specified under
measurement value ≦66,000 PPM.
* PPM - parts per million
*@ 23± 5℃
Temperature
Function |
Measuring Range |
Resolution |
Accuracy |
℃ |
0 ℃ to 60 ℃ |
0.1 ℃ |
± 0.8 ℃ |
℉ |
32 ℉ to 140 ℉ |
0.1 |
℉± 1.5 ℉ |
*@ 23± 5℃
Salt
鹽分測棒 (Salt probe)
-
Carbon rod electrode for long
life.
測量範圍 (Measuring Range)
-
0 to 12 % salt ( % weight ).
解析度 (Resolution)
-
0.01 % salt.
精確度 (Resolution)
0.5 % salt value * F.S. : full
scale. 溫度補償 (Temperature
Compensation)
-
Automatic from 0 to 60℃ ( 32 -
140℉ ), with temperature compensation factor variable between 0 to 5.0% per
C.
探棒操作溫度 (Probe Operating Temp.)
-
0 to 60 . ℃
探棒尺寸 (Probe Dimension)
-
Round, 22 mm Dia. x 120 mm length.
選購探棒及附件 (Optional probe and accessories)
-
* Pt Conductivity/TDS/Salt probe, CDPB-04
|
